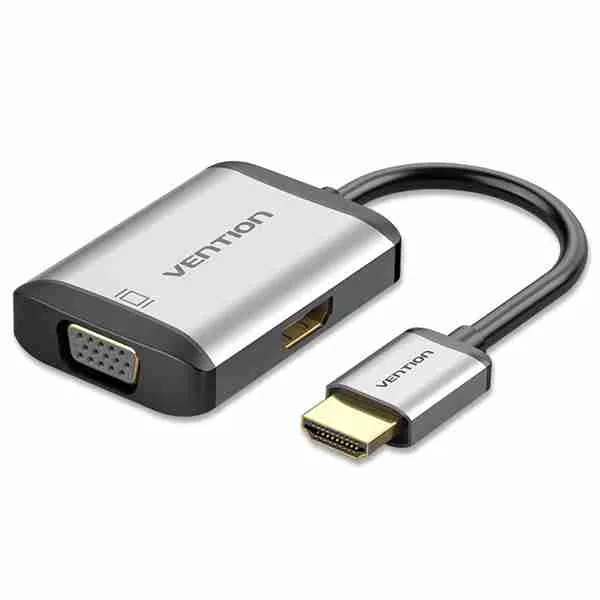

Vention HDMI to HDMI + VGA Converter 0.15M Gray Metal Type (AFVHB)

The Vention HDMI to HDMI + VGA Converter (AFVHB / VEN-AFVHB) is a compact active video adapter designed to convert a single HDMI output into simultaneous HDMI and VGA display outputs. Built for versatility, it allows users to connect modern laptops, gaming consoles, and media devices to both new HDMI displays and older VGA projectors or monitors at the same time. Supporting up to 4K HDMI output and Full HD VGA output, this converter is ideal for presentations, dual-screen setups, classrooms, and professional workstations requiring multi-display compatibility.

Product Features

Dual Display Output Support

The converter provides one HDMI output and one VGA output, enabling simultaneous connection to two displays. It supports both mirror mode and extended mode for flexible screen configurations.

High-Resolution Video Performance

The HDMI output supports up to 4K UHD (3840 × 2160) at 30Hz, while the VGA output supports up to 1080p Full HD at 60Hz. When both outputs are used simultaneously, the resolution is optimized to Full HD 1080p for stable performance.

Active Signal Conversion with AG6200 Chip

Powered by the AG6200 high-performance chipset, the converter ensures stable and accurate conversion from digital HDMI signals to both digital HDMI and analog VGA outputs with minimal distortion.

Built-In Audio Output Support

A dedicated 3.5mm audio jack allows external audio output when using the VGA connection, ensuring synchronized sound and video playback even on non-audio VGA displays.

Durable Metal Housing Design

Constructed with a robust aluminum alloy shell, the converter offers improved heat dissipation, EMI shielding, and long-term durability for continuous use in professional environments.

Supplemental Power via Micro USB

A Micro USB power port provides additional 5V power support for low-power HDMI sources, ensuring stable operation with devices that cannot supply sufficient power through HDMI alone.

Plug-and-Play Convenience

The adapter works instantly without requiring drivers or software installation, supporting major operating systems including Windows, macOS, and Linux.

Wide Device Compatibility

Compatible with laptops, desktops, gaming consoles, and media devices, the converter supports connection to HDMI TVs, VGA projectors, monitors, and other display equipment.

Product Specifications

• Product Name: Vention HDMI to HDMI + VGA Converter 0.15M Gray Metal Type
• Model: AFVHB (VEN-AFVHB)
• Device Type: HDMI to HDMI + VGA Active Converter
• Cable Length: 0.15 meters (15 cm)
• Chipset: AG6200 high-performance conversion chip
• HDMI Output Resolution: Up to 4K UHD (3840 × 2160) at 30Hz
• VGA Output Resolution: Up to 1080p Full HD (1920 × 1080) at 60Hz
• Simultaneous Output Resolution: Up to 1080p at 60Hz
• Audio Output: 3.5mm stereo audio jack (for VGA output)
• Power Input: Micro USB 5V auxiliary power support
• Conductor Material: High-quality internal signal processing components
• Connector Type: Gold-plated HDMI, VGA, and audio interfaces
• Housing Material: Aluminum alloy metal casing
• Shielding: EMI-protected metal shielding design
• Operating Modes: Mirror mode and extended display mode
• Compatibility: Windows, macOS, Linux systems
• Directionality: HDMI input to HDMI + VGA output only
• Installation: Plug-and-play, no drivers required
