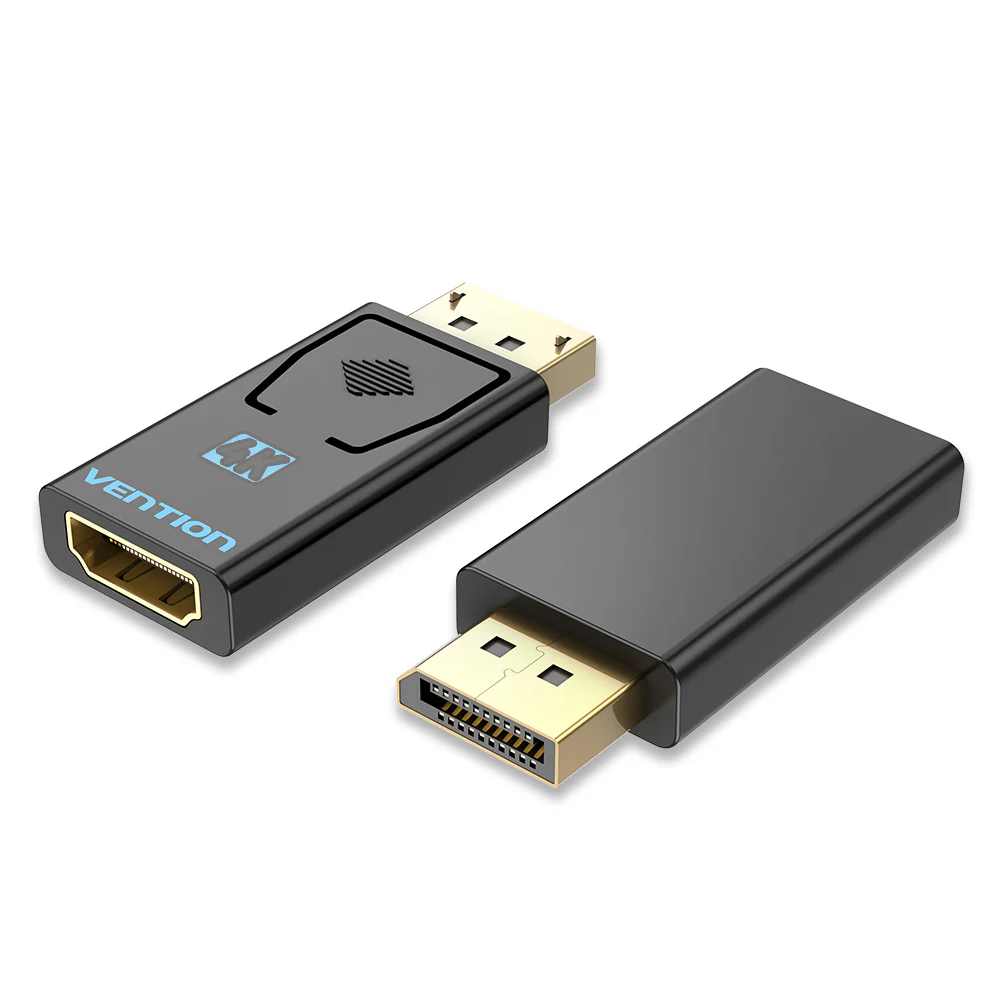

Vention DisplayPort Male to HDMI Female Adapter Black (HBMB0)

The Vention DisplayPort Male to HDMI Female Adapter (HBMB0) is a compact active conversion adapter designed to connect DisplayPort-enabled computers, laptops, and graphics cards to HDMI displays such as monitors, TVs, and projectors. It provides stable high-definition video and audio output through a simple plug-and-play connection. With its integrated conversion chipset and durable construction, this adapter ensures reliable performance for both professional and everyday display setups.

Product Features

4K Ultra HD Video Output

Supports resolutions up to 3840 x 2160 at 30Hz and Full HD 1080p at 60Hz, delivering sharp and stable visuals for work, presentations, and entertainment.

High-Definition Audio Transmission

Supports synchronized transmission of uncompressed digital audio, including up to 7.1 surround sound channels for an immersive viewing experience.

Active Signal Conversion Technology

Built with an integrated CH7530A chipset, the adapter actively converts DisplayPort signals into HDMI output, ensuring stable and accurate transmission without signal loss.

Plug and Play Operation

No drivers or external power supply required. The adapter works immediately once connected, providing a simple and efficient setup experience.

Durable Gold-Plated Connectors

Features 24K gold-plated connectors that improve conductivity, reduce corrosion, and maintain long-term stable performance.

Compact and Lightweight Design

Designed in a small form factor for easy portability and convenient use in mobile workstations, office setups, and travel environments.

HDMI Female Output Flexibility

Includes an HDMI female port, allowing connection to standard HDMI cables for flexible display placement and cable management.

Stable and Interference-Free Performance

Built-in shielding reduces electromagnetic interference, ensuring clean and stable signal transmission.

Secure Locking DisplayPort Connector

Equipped with a latch-lock mechanism on the DisplayPort connector to prevent accidental disconnection during use.

Wide Device Compatibility

Compatible with DisplayPort-enabled devices supporting DP++ output and works with Windows, macOS, and Linux systems.

Product Specifications

• Model: HBMB0
• Adapter Type: DisplayPort Male to HDMI Female
• Input Interface: DisplayPort (Male)
• Output Interface: HDMI (Female)
• Maximum Resolution: 3840 x 2160 at 30Hz (4K UHD)
• Supported Resolution: 1920 x 1080 at 60Hz, 1920 x 1200
• DisplayPort Version: 1.2
• HDMI Version: 1.4
• Chipset: CH7530A active conversion chip
• Audio Support: Up to 7.1 channel uncompressed digital audio
• Power Supply: Bus-powered via DisplayPort (<300mA)
• Connector Material: 24K gold-plated
• Housing Material: ABS (some variants aluminum alloy)
• Shielding: Internal EMI shielding
• Dimensions: Approximately 40.1mm x 23.1mm x 8.9mm
• Weight: 20–50 grams
• Operating Temperature: -10°C to 70°C (varies by variant)
• Direction: Unidirectional (DisplayPort to HDMI only)
• Compatibility: Windows, macOS, Linux; DP++ supported devices recommended
• Installation: Plug and play, no drivers required
