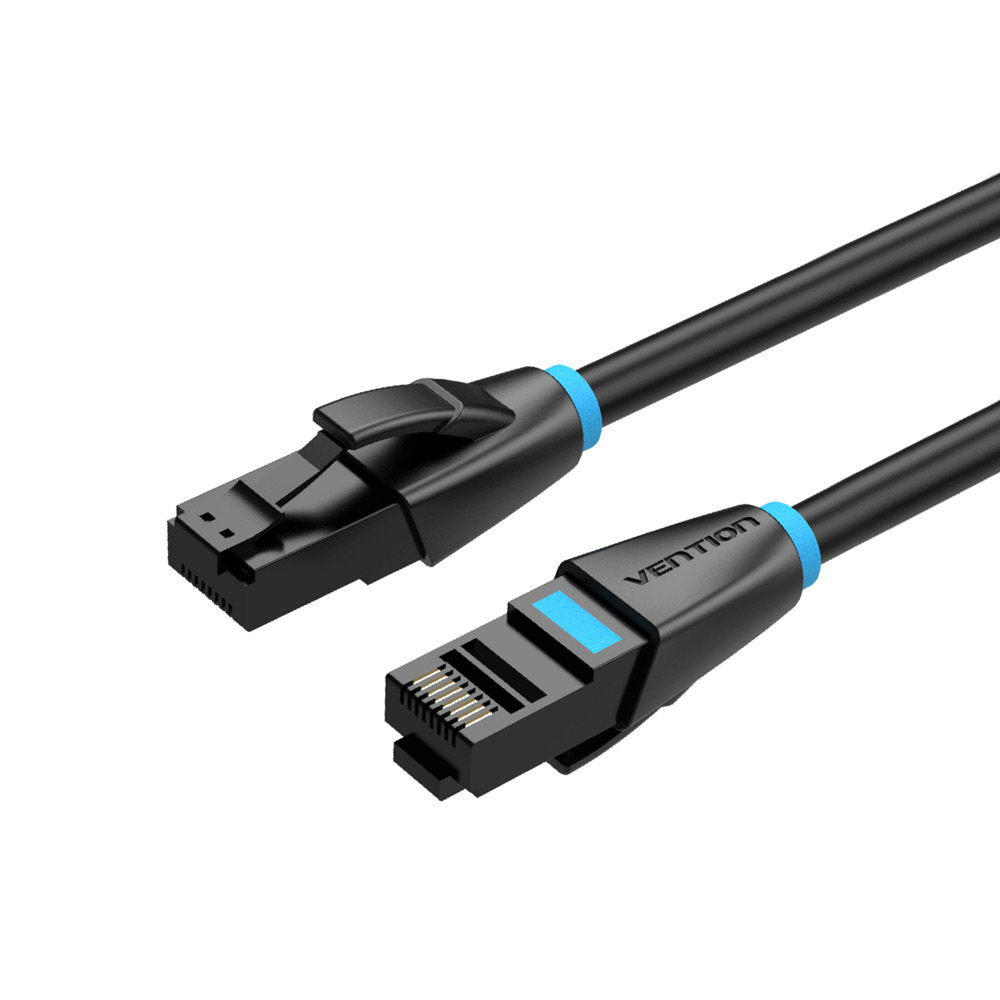

Vention Cat.6 UTP RJ45 Ethernet Patch Cable 30 Meters (IBKBT)

The Vention Cat.6 UTP RJ45 Ethernet Patch Cable 30 Meters (IBKBT) is a professional-grade long-distance networking cable designed to deliver stable and high-speed wired internet connectivity. Engineered for demanding environments such as offices, data setups, and surveillance systems, it ensures consistent Gigabit performance over extended distances. With high-purity oxygen-free copper conductors and a robust twisted-pair structure, this cable minimizes signal loss and maintains reliable transmission quality for both everyday and critical networking applications.

Product Features

Stable Gigabit Ethernet Performance over Long Distance

The IBKBT Cat.6 cable supports data transmission speeds up to 1 Gbps with a bandwidth of 250 MHz. It is optimized for long-distance runs up to 30 meters while maintaining stable performance for streaming, gaming, VoIP, and enterprise networking.

High-Purity Oxygen-Free Copper Conductors

Built with oxygen-free copper (OFC) conductors, the cable provides superior conductivity and reduced signal attenuation compared to aluminum-based alternatives. This ensures stronger and more reliable network performance, especially over longer cable lengths.

8-Core Twisted Pair with Cross Skeleton Design

The internal 8-core twisted pair structure includes a cross skeleton (spline) separator that reduces near-end crosstalk (NEXT). This enhances signal clarity and improves overall network stability in high-interference environments.

Gold-Plated RJ45 Connectors for Reliable Signal Transfer

The cable features RJ45 8P8C connectors with gold-plated contacts, improving conductivity and resistance to corrosion. This ensures long-lasting and stable connections even with frequent plugging and unplugging.

Durable Snagless PVC Jacket for Protection

Encased in a flexible and durable PVC outer jacket, the cable is designed to withstand bending, pulling, and installation stress. The snagless molded boots protect the locking tabs from damage during installation and maintenance.

Product Specifications

• Model: IBKBT
• Product Type: Cat.6 UTP Ethernet Patch Cable
• Length: 30 meters
• Category: Cat.6
• Maximum Data Rate: Up to 1 Gbps (1000 Mbps)
• Bandwidth: Up to 250 MHz
• Conductor Material: Oxygen-Free Copper (OFC)
• Conductor Gauge: 26 AWG stranded copper
• Cable Structure: 8-core twisted pair with internal cross skeleton (spline)
• Connector Type: RJ45 (8P8C) male to male
• Contact Plating: Gold-plated (approx. 50μ”)
• Jacket Material: Flexible PVC (flame-retardant grade)
• Outer Diameter: Approximately 5.5 mm to 6.0 mm
• Design: Snagless molded strain relief boots
• Standards Compliance: TIA/EIA-568B and ISO/IEC 11801
• Operating Temperature: -20°C to +60°C
• Application: Office networking, server connections, PoE devices (IP cameras, VoIP phones), gaming, HD/4K streaming, long-distance Ethernet runs, structured cabling systems
