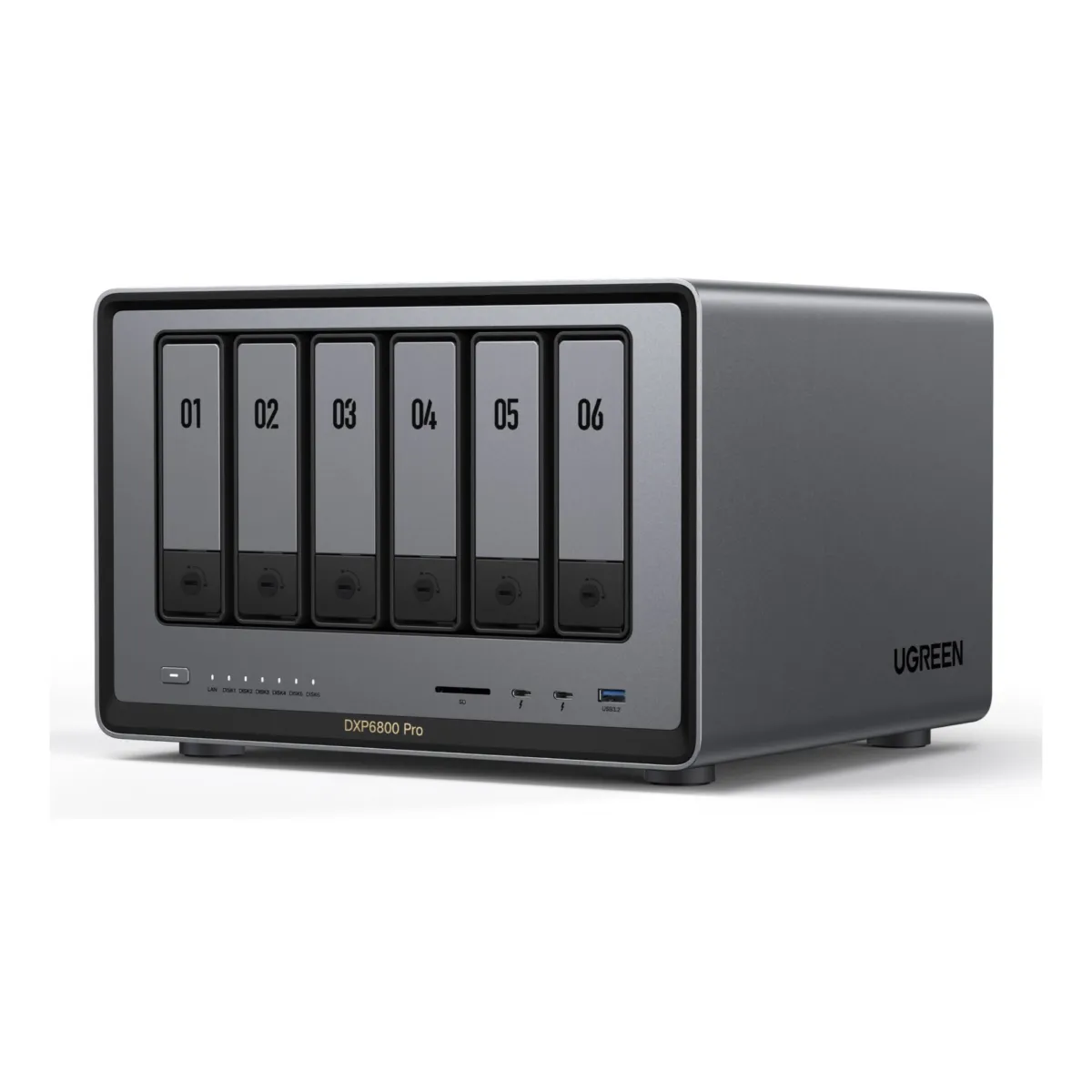

UGREEN NASync DXP6800 Pro 6-Bay Network Attached Storage – CM720 (UG-25897B)

The UGREEN NASync DXP6800 Pro is a high-performance 6-bay Network Attached Storage solution built for creative professionals, studios, and small businesses that require powerful data management and massive storage capacity. Powered by a 12th Gen Intel Core i5-1235U processor and running the Linux-based UGOS Pro operating system, this NAS delivers workstation-class performance for demanding workloads such as 4K and 8K video editing, large-scale backups, and collaborative file sharing. With six hot-swappable SATA drive bays, dual M.2 NVMe slots for caching, and dual 10GbE networking, the NASync DXP6800 Pro provides exceptional speed, scalability, and reliability for modern data environments.

Product Features

Powerful Intel Core Processing Performance

The NASync DXP6800 Pro is powered by a 12th generation Intel Core i5-1235U processor with 10 cores and turbo speeds up to 4.4 GHz. This advanced processor delivers high computing power for intensive tasks such as media processing, virtualization, and high-speed data transfers.

Massive Expandable Storage Capacity

Designed for large-scale storage needs, the NAS features six hot-swappable SATA drive bays supporting both 3.5 inch and 2.5 inch drives. Combined with two NVMe M.2 slots for caching, the system supports a maximum storage capacity of up to 196TB, making it ideal for professional data archiving and backup solutions.

Ultra Fast Networking and Connectivity

The device is equipped with dual 10GbE RJ45 ports capable of delivering up to 20Gbps combined network bandwidth. Dual Thunderbolt 4 ports provide ultra-fast 40Gbps connectivity for direct attached storage workflows, enabling seamless high-speed file transfers.

Advanced RAID Data Protection

The NAS supports multiple RAID configurations including RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10, providing flexible options for balancing performance, storage efficiency, and data redundancy.

Professional Grade Ports and Expansion

In addition to Thunderbolt and 10GbE connectivity, the system includes USB 3.2 ports, an SD 4.0 card reader for quick media transfers, and HDMI 2.1 with 8K output. A PCIe 4.0 x4 expansion slot allows users to install additional networking cards or performance upgrades.

Durable Aluminum Design with Efficient Cooling

The NASync DXP6800 Pro features a premium aluminum alloy chassis designed for durability and efficient heat dissipation. Dual cooling fans and a removable magnetic dust filter help maintain optimal temperatures while keeping operation quiet between 29 and 34 dB.

Intelligent Storage Management with UGOS Pro

Running on the Linux-based UGOS Pro operating system, the NAS provides advanced storage management, application support, and remote access. The system supports media streaming, virtualization, and container applications for flexible deployment.

Product Specifications

• Model: UGREEN NASync DXP6800 Pro (UG-25897B)
• Device Type: 6-Bay Network Attached Storage (Diskless)
• Processor: Intel Core i5-1235U, 10 cores, up to 4.4 GHz
• Operating System: UGOS Pro (Linux-based)
• Memory: 8GB DDR5 4800MHz RAM
• Maximum Memory: Up to 64GB
• System Drive: 128GB NVMe SSD for operating system
• Drive Bays: 6 x SATA bays supporting 3.5 inch or 2.5 inch drives
• NVMe Slots: 2 x M.2 2280 PCIe Gen4 for SSD caching
• Maximum Storage Capacity: Up to 196TB
• Networking: 2 x 10GbE RJ45 ports
• Thunderbolt Ports: 2 x Thunderbolt 4 (40Gbps)
• USB Ports: USB 3.2 Gen 2 and USB 2.0 ports
• Video Output: HDMI 2.1 with 8K support
• Card Reader: SD 4.0 card reader
• Expansion Slot: PCIe 4.0 x4
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Cooling System: Dual cooling fans with removable magnetic dust filter
• Noise Level: Approximately 29 dB to 34 dB
• Chassis Material: Aluminum alloy
• Weight: Approximately 6 kg
