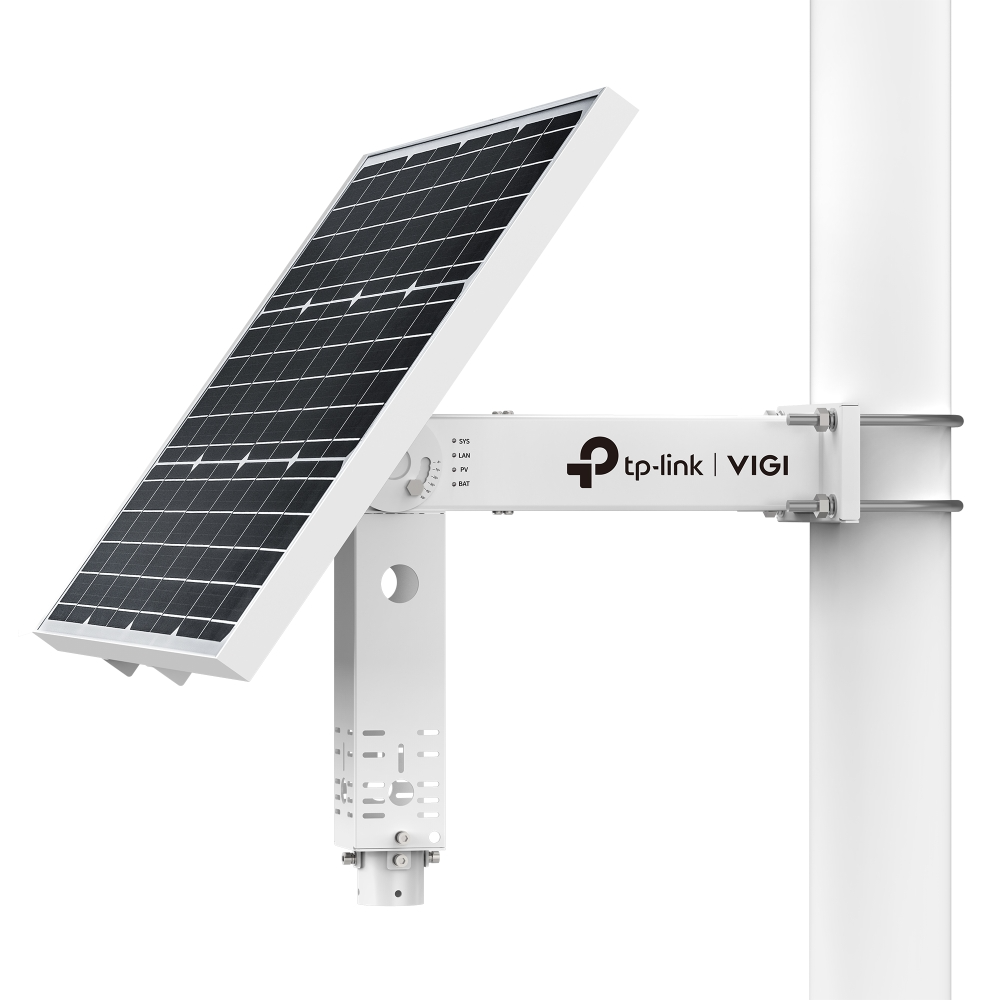

TP-Link VIGI Intelligent Solar Power Supply System (VIGI SP6030)

The TP-Link VIGI Intelligent Solar Power Supply System (VIGI SP6030) is a robust off-grid power solution designed for continuous and reliable energy supply to surveillance and remote monitoring systems. It combines a high-efficiency 60W photovoltaic solar panel with a 31.2Ah lithium battery, ensuring stable power delivery even in remote or unstable power environments. Built with intelligent energy management, MPPT charging technology, and weatherproof IP66 protection, this system is engineered for outdoor security deployments requiring long-term autonomy, low maintenance, and smart remote control capabilities.

Product Features

High-Efficiency 60W Solar Energy Generation

The system is equipped with a 60W photovoltaic panel designed to capture solar energy efficiently, delivering consistent power generation for connected surveillance devices. The 18V output ensures stable energy conversion and optimized charging performance.

Large-Capacity 31.2Ah Lithium Battery Storage

It features a high-capacity lithium battery with 31.2Ah storage at 10.8V, providing long-lasting power backup. With more than 500 charge cycles, it supports extended operational life for remote security applications.

Intelligent MPPT Charging Technology

The integrated Maximum Power Point Tracking (MPPT) controller optimizes solar charging efficiency by continuously adjusting input conditions. This ensures maximum energy harvest even under fluctuating sunlight conditions.

Intelligent Auxiliary Heating System

Designed for extreme environments, the system includes intelligent auxiliary heating that enables battery operation and charging in low temperatures as low as -30°C. This ensures uninterrupted performance in harsh weather conditions.

Adjustable Solar Panel Angle Design

The solar panel supports multiple manual tilt angles including 5°, 15°, 25°, 35°, 45°, and 55°. This flexibility allows users to optimize solar exposure based on geographic location and seasonal sunlight variation.

Remote Management and Smart Monitoring

The system supports remote management features such as real-time load monitoring, power consumption statistics, battery level tracking, firmware updates, and remote reboot functionality. This enables efficient system control without physical access.

IP66 Weatherproof Outdoor Protection

Built with IP66-rated protection, the system is resistant to dust, rain, and harsh environmental conditions. This makes it suitable for long-term outdoor installations in challenging climates.

Modular and Easy Installation Design

The modular structure simplifies installation and maintenance, allowing quick deployment in field environments. It supports flexible configuration with multiple DC output ports for various connected devices.

Product Specifications

• Solar Panel Power: 60W
• Solar Panel Voltage: 18V
• Solar Panel Dimensions: 690 × 516 × 30 mm
• Battery Type: Lithium
• Battery Capacity: 31.2Ah
• Battery Voltage: 10.8V
• Maximum Output Voltage: 12.6V
• Battery Life: More than 500 cycles
• Battery Dimensions: 242 × 70 × 65 mm
• Charging Temperature Range:
  • 0°C to 45°C
  • -30°C to 45°C (with intelligent auxiliary heating)
• Discharging Temperature Range:
  • -20°C to 60°C
  • -30°C to 60°C (with intelligent auxiliary heating)
• Angle Adjustment: 5°, 15°, 25°, 35°, 45°, 55°
• Interface Options:
  • 1 × 10/100 Mbps RJ45
  • 1 × Photovoltaic panel connector
  • 3 × 5.5mm DC power outputs (9V–12.6V / 2A and 12V / 2A)
• Indicator LEDs: SYS, LAN, PV, BAT (Blue indicators)
• Load Control: Supported
• High/Low Temperature Protection: Supported
• Over-discharge Protection: Supported
• Power Consumption Statistics: Supported
• Real-time Load Display: Supported
• Battery Level Monitoring: Supported
• Remote Firmware Update: Supported
• Remote Reboot and Reset: Supported
• Local LAN Management: Supported
• Scheduled Operation Support: Supported
• Intelligent Heating Control Range: -30°C to 5°C
• Account Management and Remote Alerts: Supported
• Certifications: CB, PSE (Battery), CE, FCC, VCCI, IC, IP66
• Operating Temperature: -30°C to 60°C (with auxiliary heating)
• Operating Humidity: 10% to 90% RH, non-condensing
• Product Weight: 14 kg
• Package Weight: 15.5 kg
• Box Dimensions: 800 × 615 × 225 mm
