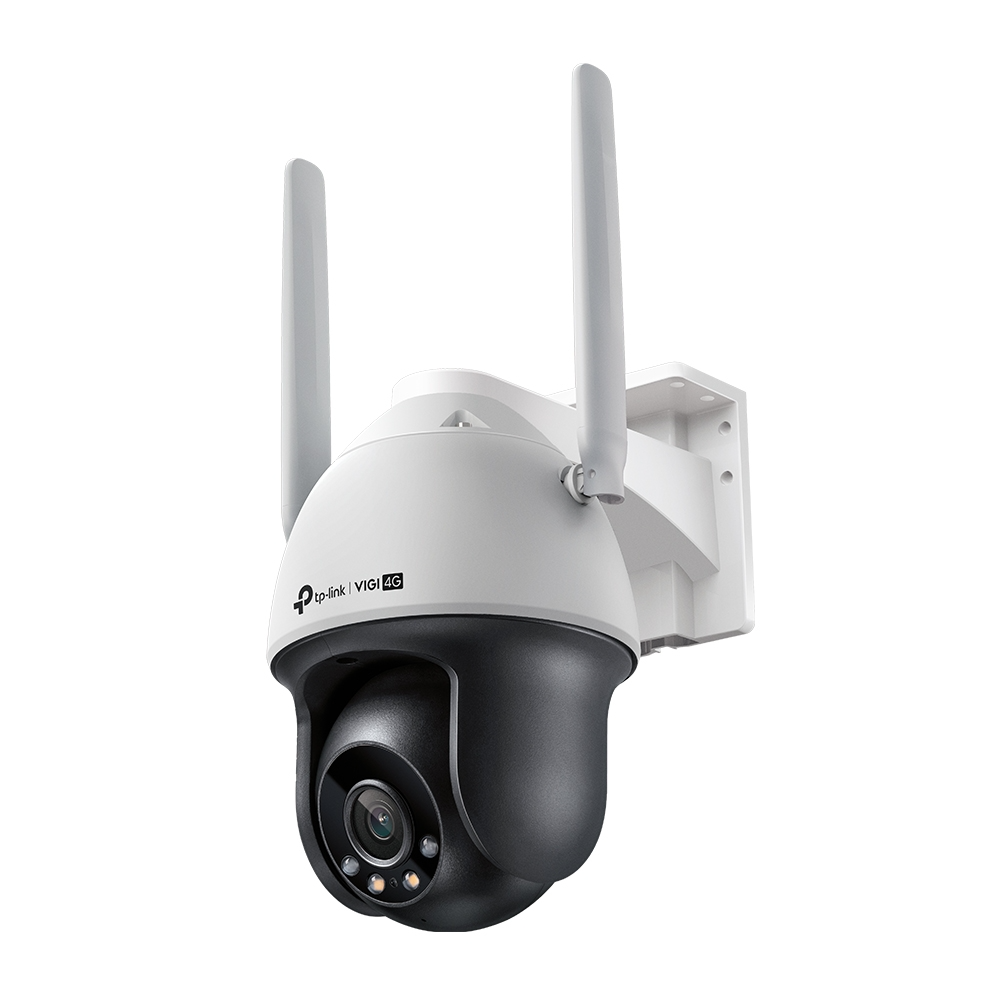

TP-Link VIGI 4MP Outdoor Full-Color 4G Pan Tilt Network Camera (VIGI C540-4G)

The TP-Link VIGI C540-4G 4MP Outdoor Full-Color Pan Tilt Network Camera is a powerful, flexible surveillance solution designed for locations without wired internet access. Featuring built-in 4G connectivity, this camera delivers seamless remote monitoring with 4MP high-definition video and full-color night vision. Its intelligent pan and tilt functionality, automatic tracking, and smart detection features ensure comprehensive coverage and proactive security. With active defense, two-way audio, and durable IP66 weatherproof protection, the VIGI C540-4G is ideal for remote sites, construction areas, farms, and outdoor environments requiring reliable, always-on surveillance.

Product Features

4MP Super-High Definition Video

Capture clear and detailed footage at 2560 × 1440 resolution, ensuring accurate monitoring and identification.

24-Hour Full-Color Surveillance

Equipped with a high-sensitivity sensor and integrated white light LEDs, the camera provides vivid color video even in complete darkness.

4G Mobile Connectivity

Operate without traditional internet infrastructure using 4G LTE support, making it ideal for remote or off-grid locations.

360 Degree Pan Tilt Coverage

Monitor wide areas with flexible pan and tilt functionality, eliminating blind spots and ensuring full coverage.

Automatic Tracking Technology

Automatically follows moving people or vehicles, providing continuous monitoring and reducing the need for manual control.

Human and Vehicle Classification

Advanced AI detection distinguishes between people and vehicles, reducing false alerts and improving event accuracy.

Smart Detection and Instant Alerts

Receive real-time notifications for intrusion, line crossing, region entry or exit, object removal, and abnormal activity.

Active Defense System

Deter intruders with built-in sound and light alarms triggered during suspicious events.

Two-Way Audio Communication

Communicate remotely with built-in microphone and speaker for real-time interaction and enhanced security response.

H.265+ Video Compression

Reduce bandwidth usage and storage requirements while maintaining high-quality video output.

Weatherproof Outdoor Design

Built with IP66-rated protection to withstand rain, dust, and harsh environmental conditions.

Flexible Storage and Remote Management

Supports microSD storage up to 512 GB and offers full control via VIGI app, web interface, and PC client.

Product Specifications

• Image Sensor: 1/3.06 inch Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440
• Minimum Illumination: 0.005 Lux, 0 Lux with IR or white light
• Lens Type: Fixed focal lens
• Focal Length: 4 mm
• Aperture: F1.6
• Field of View: Horizontal 80°, Vertical 43°, Diagonal 94°
• Lens Mount: M12 0.5
• DORI Distance: Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m
• Pan and Tilt Range: Pan 0° to 348°, Tilt 0° to 120°
• Pan Speed: Up to 44° per second
• Tilt Speed: Up to 44° per second
• Presets: Up to 300 preset positions
• Patrol Modes: 8 patrols with up to 8 presets each
• Infrared Range: Up to 30 m
• White Light Range: Up to 30 m
• Video Compression: H.265+, H.265, H.264+, H.264
• Frame Rate: Up to 30 fps depending on configuration
• Bit Rate: Main stream 256 Kbps to 3 Mbps, sub-stream 64 Kbps to 512 Kbps
• Image Enhancements: DWDR, 3D DNR, BLC, HLC, Smart IR
• Signal to Noise Ratio: 52 dB or higher
• Privacy Mask: Up to 4 configurable areas
• Audio: Built-in microphone and speaker, two-way audio, G.711 compression
• Network Interface: 1 RJ45 10/100 Mbps Ethernet port
• 4G Support: LTE-FDD, LTE-TDD, WCDMA with nano SIM slot
• Data Speed: Uplink up to 50 Mbps, downlink up to 150 Mbps
• Supported Protocols: TCP/IP, HTTP, HTTPS, RTSP, DHCP, DNS, NTP, SSL/TLS
• ONVIF Support: Profile S
• Simultaneous Live View: 2 main streams and 2 sub-streams
• Onboard Storage: MicroSD card slot supporting up to 512 GB
• Operating Temperature: -30°C to 60°C
• Storage Temperature: -40°C to 60°C
• Operating Humidity: Up to 95 percent non-condensing
• Power Supply: 12V DC power adapter
• Protection Rating: IP66 weatherproof
• Dimensions: 120 × 182 × 201 mm (excluding antennas)
• Weight: Net 0.69 kg, Gross 1.16 kg
• Certifications: CE, RoHS, NCC, and others
• Included Accessories: Mounting hardware, waterproof attachments, power adapter, quick start guide
