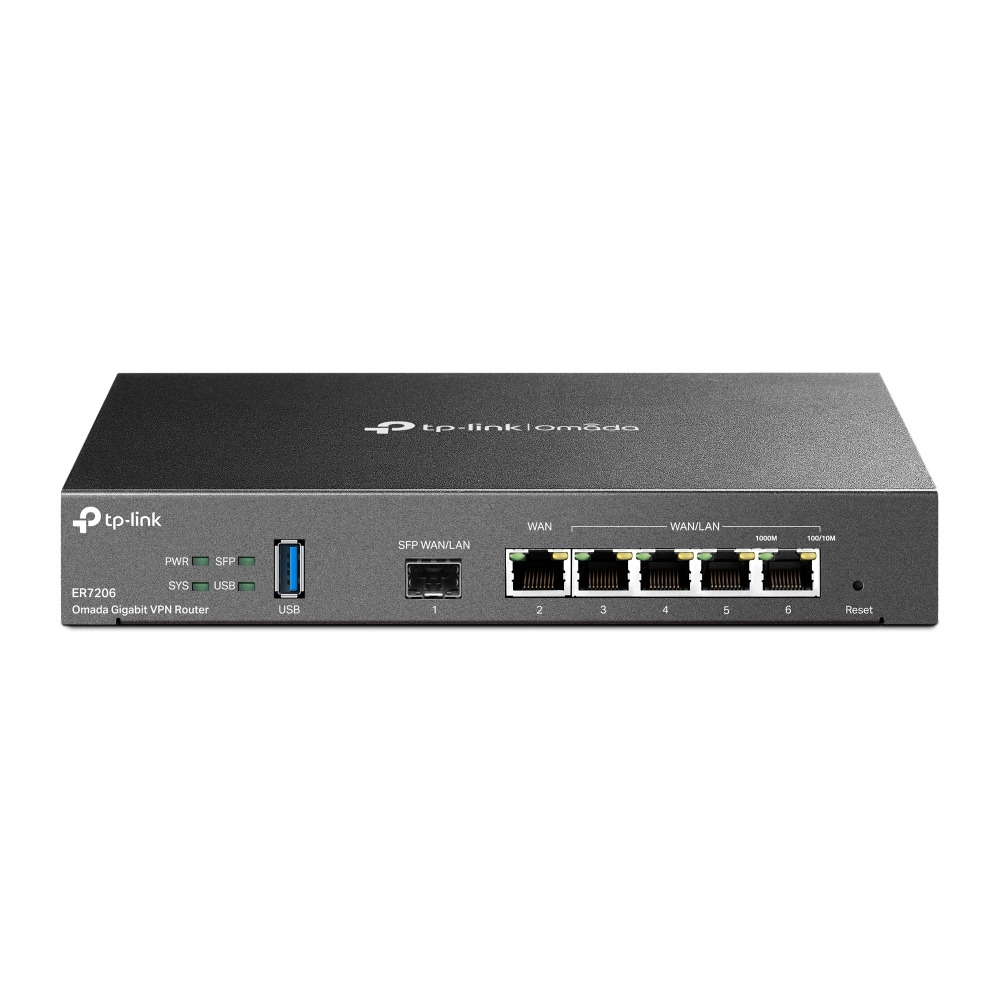

TP-Link Omada Gigabit VPN Gateway (ER7206)

The TP-Link Omada Gigabit VPN Gateway (ER7206) is a powerful and secure enterprise-grade router designed to deliver high-speed connectivity, advanced VPN capabilities, and centralized cloud management. Built for small to medium-sized businesses, this Omada SDN-integrated gateway offers flexible WAN options, robust security features, and high-performance throughput. With support for multiple VPN protocols and intelligent traffic management, it ensures reliable, secure, and scalable network infrastructure.

Product Features

Omada SDN Integration and Cloud Management

Fully integrated with the Omada Software Defined Networking platform, enabling centralized cloud management, zero-touch provisioning, and real-time network monitoring via web interface or mobile app.

High-Speed Gigabit Connectivity

Equipped with one Gigabit SFP port and five Gigabit RJ45 ports, providing fast and reliable wired connections for seamless network performance.

Flexible Multi-WAN Support

Supports up to five WAN ports, allowing optimized bandwidth usage, load balancing, and link backup for uninterrupted internet connectivity.

Advanced VPN Support

Offers extensive VPN capabilities including SSL, WireGuard, OpenVPN, IPsec, GRE, PPTP, and L2TP, enabling secure remote access and site-to-site connectivity.

Comprehensive Network Security

Includes advanced firewall policies, DoS protection, IP and MAC filtering, URL filtering, and ARP inspection to safeguard your network against threats.

High Performance and Throughput

Delivers strong performance with up to 150,000 concurrent sessions and high VPN throughput, ensuring smooth operation in demanding environments.

Intelligent Traffic Management

Features load balancing, bandwidth control, and application-optimized routing to enhance network efficiency and user experience.

USB 3.0 Connectivity

Includes a USB 3.0 port for LTE dongles or external storage, adding flexibility for backup connectivity and data sharing.

Durable and Flexible Design

Built with a sturdy steel enclosure, fanless operation for silent performance, and support for both desktop and wall mounting.

Product Specifications

• Interfaces: 1 x Gigabit SFP WAN/LAN port, 1 x Gigabit WAN port, 4 x Gigabit LAN/WAN ports, 1 x USB 3.0 port
• Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3z, TCP/IP, DHCP, NAT, PPPoE, IPSec, OpenVPN, WireGuard, SNMP
• VPN Support: IPsec, SSL VPN, OpenVPN, WireGuard, L2TP, PPTP, GRE
• Maximum VPN Tunnels: Up to 100 IPsec, 55 OpenVPN, 50 SSL, 20 WireGuard
• Concurrent Sessions: 150,000
• NAT Throughput: Up to 945 Mbps
• IPsec VPN Throughput: Up to 617 Mbps
• WireGuard Throughput: Up to 341 Mbps
• OpenVPN Throughput: Up to 139 Mbps
• Power Supply: 12V DC / 1A adapter
• Maximum Power Consumption: 7.5 W (with USB), 4.5 W (without USB)
• Memory: 512 MB DDR4 RAM, 128 MB NAND flash
• Protection: 4 kV surge protection
• Enclosure: Steel, fanless design
• Mounting: Desktop or wall mounting
• Dimensions: 226 x 131 x 35 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Certifications: CE, FCC, RoHS
• Package Contents: ER7206 gateway, power adapter, quick installation guide
