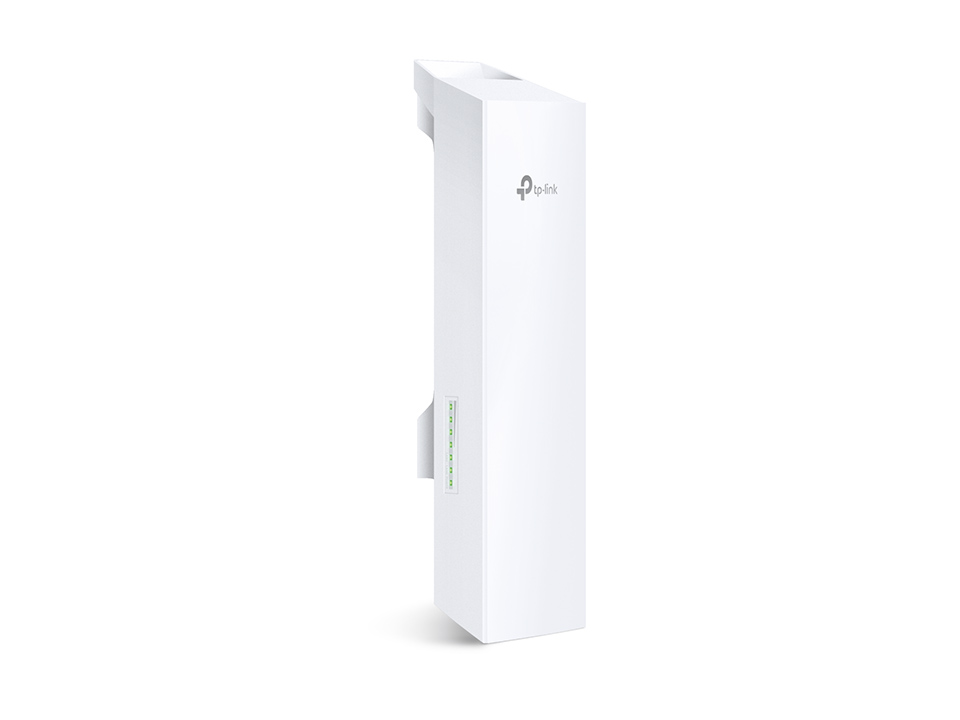

TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE (TL-CPE220)

The TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE (TL-CPE220) is a high-performance wireless solution designed for long-range outdoor networking. Ideal for point-to-multipoint (PTMP) applications, it features a built-in 12dBi dual-polarized directional antenna and advanced Pharos MAXtream TDMA technology to deliver stable, high-speed connections over distances exceeding 13 kilometers. With adjustable transmission power, multiple operation modes, and centralized management via Pharos Control, this CPE ensures reliable connectivity, energy efficiency, and effortless network management for both commercial and residential deployments.

Product Features

Built-in 12dBi Dual-Polarized Directional Antenna

Provides robust 2×2 MIMO performance for stable long-range wireless transmission.

Adjustable Transmission Power

Supports power levels from 0 to 30dBm/1000mW, allowing precise control over signal strength and coverage.

Long-Range Wireless Transmission

Optimized for distances exceeding 13 km, ensuring reliable connectivity even in challenging outdoor environments.

Pharos MAXtream TDMA Technology

Enhances throughput, capacity, and latency, making it ideal for PTMP applications with multiple clients.

Centralized Management System – Pharos Control

Enables remote discovery, monitoring, and management of multiple devices from a single interface.

Flexible Operation Modes

Supports AP, Client, AP Router, and AP Client Router (WISP) modes for versatile deployment scenarios.

Passive PoE Deployment

Supports up to 60 meters (200 feet) Power over Ethernet, allowing remote installation and reset.

Product Specifications

• Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interfaces:1 × 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in), 1 × 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough), 1 × Grounding Terminal, 1 × Reset Button
• Power Supply: Passive PoE via LAN0, 16–27VDC, Max Power Consumption: 10.8W
• Dimensions: 11 × 3.1 × 2.1 inches (276 × 79 × 60 mm)
• Antenna: Built-in 12dBi 2×2 dual-polarized directional antenna, Beam Width: 60° (H-Plane) / 30° (E-Plane)
• Protection: 15KV ESD, 6KV Lightning Protection
• Enclosure: Outdoor ASA stabilized plastic, IPX5 waterproof
• Wireless Standards: IEEE 802.11b/g/n, Pharos MAXtream TDMA
• Wireless Speeds: Up to 300Mbps (40MHz dynamic), 2.4–2.483GHz
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK, AES/TKIP, 64/128/152-bit WEP, MAC filtering
• Management Features: HTTP/HTTPS web interface, SNMP v2c, SSH server, system log, dynamic DDNS
• POE Adapter Specs: Input 100–240VAC, Output 24VDC 1A, >80% efficiency, supports up to 60m PoE
• Certifications: CE, FCC, RoHS, IPX5
• Package Includes: Outdoor CPE, 24V 1A Passive PoE adapter, pole mounting straps, AC power cord, installation guide
• Operating Environment: -30°C to 70°C, 10%–90% non-condensing humidity
• Storage Environment: -40°C to 70°C, 5%–95% non-condensing humidity
