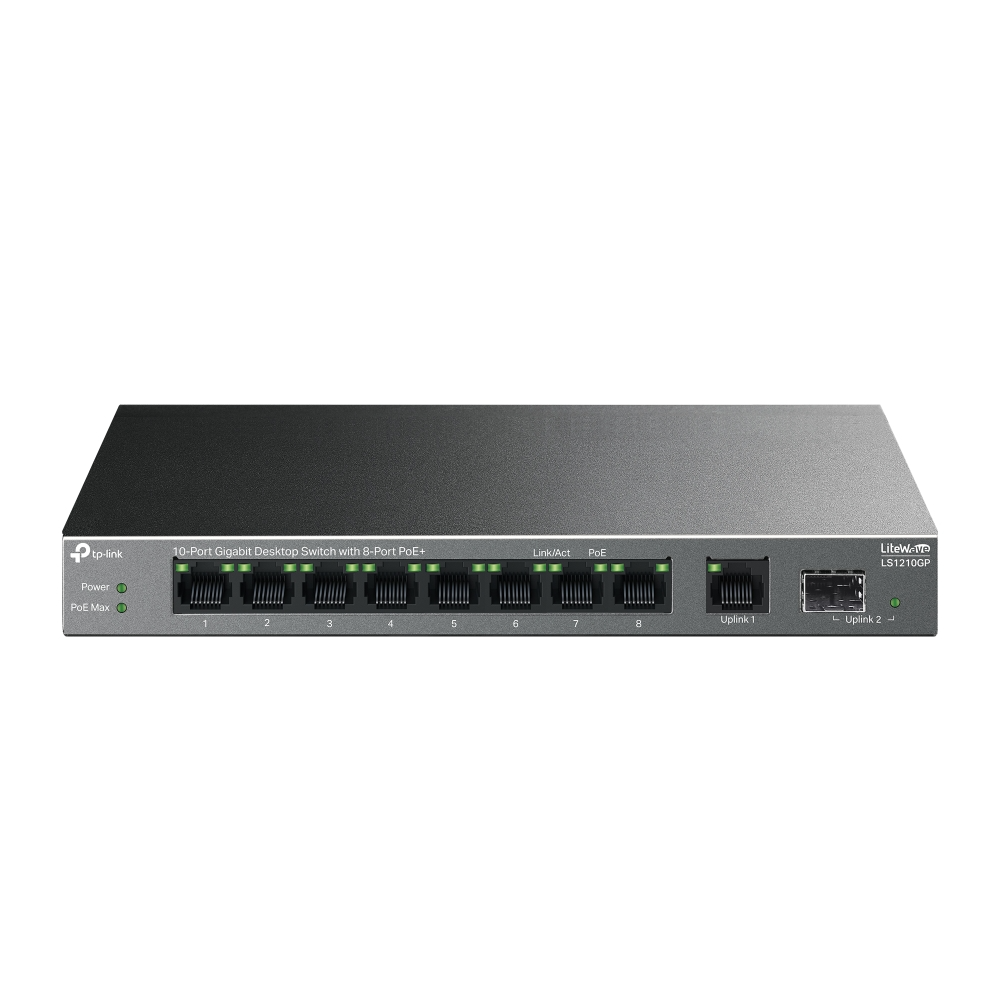

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ (LS1210GP)

The TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ (LS1210GP) is a high-performance networking solution designed for professional surveillance systems, business networks, and advanced PoE deployments. It features nine Gigabit RJ45 ports and one Gigabit SFP uplink port, delivering ultra-fast data transfer with up to 20 Gbps switching capacity. With eight PoE+ ports and a 61W power budget, it provides both power and data over a single cable to IP cameras, access points, and VoIP devices. Advanced features such as extend mode, isolation mode, and PoE auto recovery ensure stable, secure, and long-distance network performance.

Product Features

Full Gigabit Performance with SFP Uplink Port

The switch includes nine Gigabit RJ45 ports and one Gigabit SFP port, providing high-speed wired connectivity and flexible fiber uplink options for advanced network expansion.

8-Port PoE+ for Power and Data Delivery

Eight IEEE 802.3af/at-compliant PoE+ ports deliver both power and data through a single Ethernet cable, simplifying installation for IP cameras, wireless access points, and IP phones.

61W Total PoE Budget for Efficient Device Support

With a total PoE budget of 61W, the switch efficiently powers multiple low-to-medium power devices while maintaining stable performance across all connected ports.

Up to 250m Long-Distance PoE Transmission

Extend Mode enables PoE transmission distances of up to 250 meters, making it ideal for large surveillance deployments in campuses, warehouses, and outdoor environments.

PoE Auto Recovery for Continuous Operation

The switch automatically detects and reboots unresponsive PoE devices, ensuring uninterrupted operation and reducing maintenance downtime.

Isolation Mode for Enhanced Network Security

Isolation Mode allows one-click separation of client traffic across PoE ports, improving network security and preventing unauthorized data access or broadcast storms.

Plug and Play Installation

No configuration is required. The switch is ready to use immediately after connection, enabling fast and simple deployment.

Silent Fanless Design for Quiet Environments

The fanless design reduces energy consumption and ensures silent operation, making it suitable for offices, homes, and noise-sensitive environments.

Durable Metal Housing with Flexible Installation

Built with a strong metal casing, the switch supports both desktop and wall-mount installation, ensuring durability and adaptability for different setups.

Product Specifications

• Number of Ports: 10 total (9 × 10/100/1000 Mbps RJ45 ports, 1 × Gigabit SFP port)
• PoE Standard: IEEE 802.3af/at compliant
• PoE Ports: Ports 1–8
• PoE Power Budget: 61W total
• Maximum PoE Output per Port: Up to 30W
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 4K entries
• Jumbo Frame Support: Up to 16 KB
• Power Supply: External adapter (53.5V DC / 1.31A)
• Maximum Power Consumption: 76.96W (with full PoE load)
• Heat Dissipation: Up to 261.66 BTU/h (with full PoE load)
• Dimensions: 209 × 126 × 26 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
• Installation: Desktop or wall-mount
• Design: Fanless
• Certifications: CE, FCC, RoHS
• Package Contents: Switch unit, power adapter, installation guide
