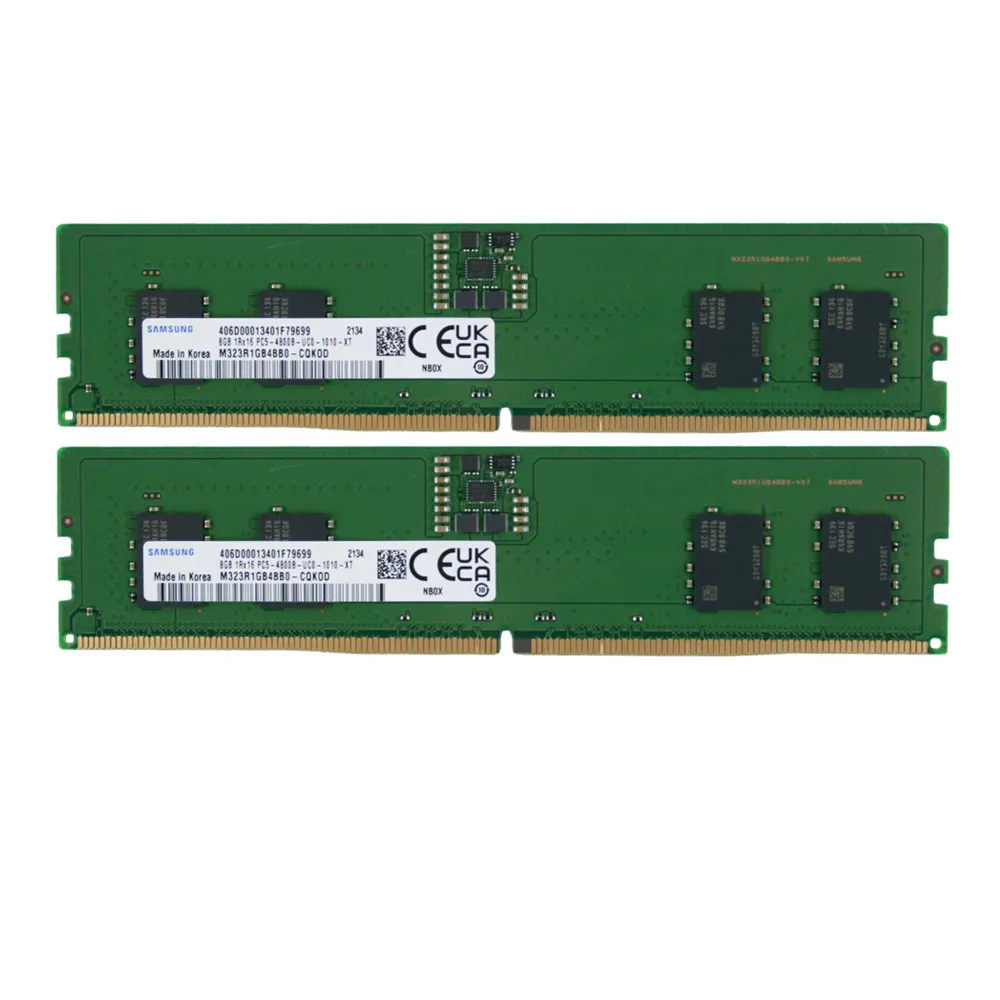

Samsung 8GB PC5-38400 DDR5 Desktop RAM (M323R1GB4BB0-CQK)

The Samsung M323R1GB4BB0-CQK is an 8GB DDR5 desktop memory module designed to deliver high-speed and energy-efficient performance for modern computing systems. Operating at 4800MHz (PC5-38400), it provides increased bandwidth and improved responsiveness compared to DDR4 memory, making it suitable for multitasking, productivity workloads, and general desktop computing. Built with Samsung’s advanced DDR5 architecture, this module is engineered for stability, efficiency, and compatibility with next-generation Intel and AMD desktop platforms that support DDR5 memory.

Product Features

High-Speed DDR5 4800MHz Performance

Delivers 4800MHz memory speed with up to 38.4 GB/s bandwidth, enabling faster data processing, improved system responsiveness, and smoother multitasking performance.

Efficient 8GB Memory Capacity

Provides 8GB of memory in a single module, making it suitable for everyday computing tasks, office applications, web browsing, and light productivity workloads.

Low Power 1.1V Operation

Operates at just 1.1V, reducing power consumption and heat output while maintaining high-speed performance for improved system efficiency.

DDR5 Advanced Architecture

Built on DDR5 technology with a 64-bit data path and improved internal architecture, allowing higher memory density and better overall performance compared to DDR4.

On-Die ECC for Data Integrity

Includes built-in On-Die Error Correction Code (ECC) that improves internal data reliability by correcting bit-level errors within the memory chip.

Single Rank 1Rx16 Configuration

Features a 1Rx16 single-rank design that supports stable operation and compatibility with a wide range of DDR5 desktop platforms.

JEDEC Standard Compatibility

Fully compliant with JEDEC DDR5 standards, ensuring automatic configuration and plug-and-play functionality without manual BIOS tuning.

Wide OEM System Compatibility

Compatible with DDR5-supported desktop systems from major manufacturers such as Dell, HP, and Lenovo, as well as custom-built PCs using DDR5 motherboards.

Product Specifications

• Brand: Samsung
• Model: M323R1GB4BB0-CQK
• Memory Type: DDR5 SDRAM
• Capacity: 8GB (Single Module)
• Speed: 4800MHz (PC5-38400)
• Form Factor: 288-pin UDIMM
• CAS Latency: CL40
• Voltage: 1.1V
• Rank: 1Rx16 (Single Rank)
• ECC: Non-ECC (On-Die ECC supported)
• Memory Organization: 1G x 64
• Chip Configuration: 4 × 1G x 16 DRAM chips
• Data Bandwidth: Up to 38.4 GB/s
• Operating Temperature: 0°C to 85°C
• Physical Height: ~31.25 mm
• Compliance: JEDEC DDR5 standard
