Paso Wire Tracker and Cable Tracer (PS806B)

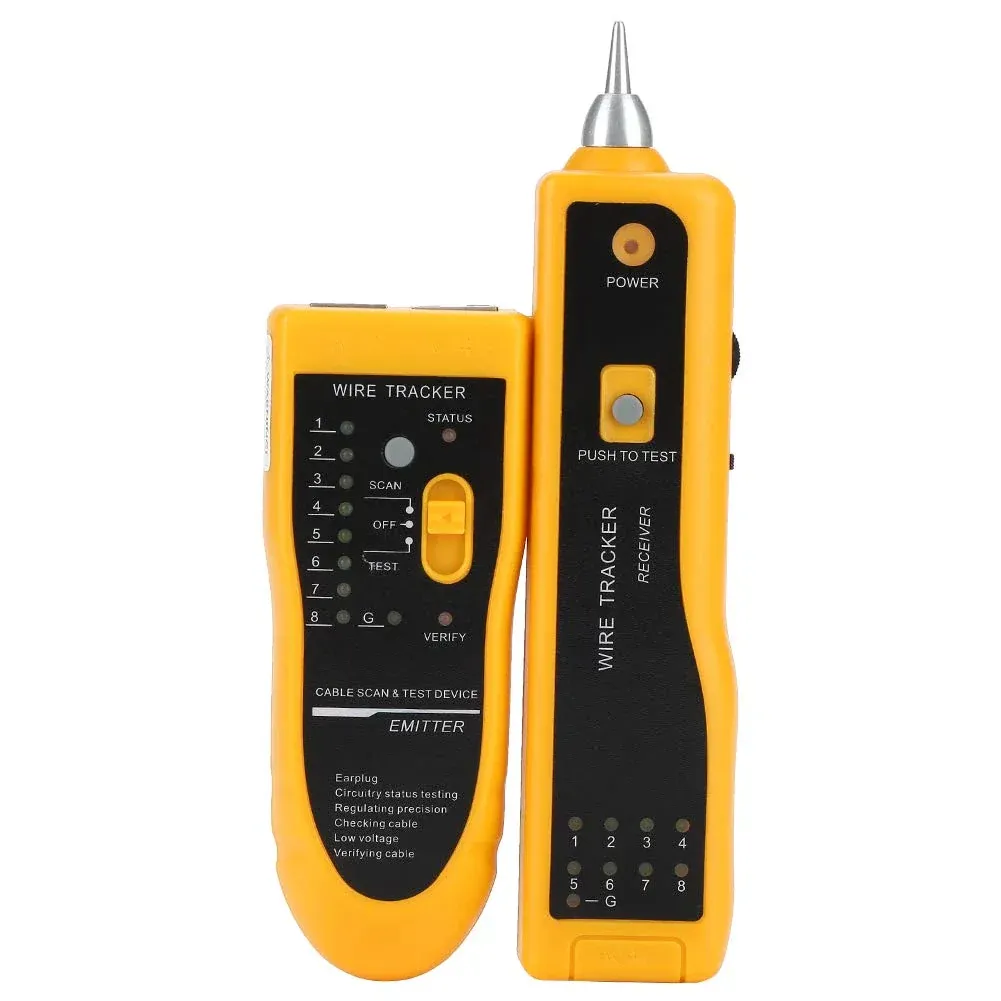

The Paso Wire Tracker and Cable Tracer PS806B is a professional-grade diagnostic tool designed for network technicians and installers to trace, identify, and test cables with precision. Featuring a transmitter and receiver system, this versatile device allows non-destructive cable detection through insulation, making it ideal for Ethernet, telephone, and low-voltage wiring. With advanced fault detection, long-distance tracing capability, and user-friendly controls, the PS806B is an essential tool for efficient network installation and troubleshooting.

Product Features

Accurate Cable Tracing and Identification

Enables quick and precise tracing of cables within bundles, walls, or complex installations without the need to strip insulation.

Wide Cable Compatibility

Supports RJ45, RJ11, and various low-voltage cables including Cat5, Cat5e, Cat6, UTP, STP, and telephone lines.

Non Destructive Signal Detection

Safely traces cables through insulation, preventing damage to wires during diagnostics and maintenance.

Long Distance Signal Transmission

Capable of tracing cables up to 2 km, making it suitable for large network installations and extended wiring systems.

Dual Unit System for Efficiency

Includes a transmitter to send signals through cables and a receiver probe to detect and identify the correct line quickly.

Wire Mapping and Fault Detection

Performs continuity testing to identify open circuits, short circuits, and miswiring using clear LED indicators.

Adjustable Sensitivity and Tone Selection

Features adjustable sensitivity and dual-tone modes to improve accuracy in environments with signal interference.

Anti Interference Design

Allows tracing of cables even when connected to active network equipment such as switches and routers.

Built in LED Indicators and Audio Feedback

Provides visual and audible alerts for accurate cable identification, including an earphone jack for use in noisy environments.

Low Voltage Alert System

Warns users when battery levels are low to ensure consistent and reliable testing results.

Integrated Flashlight for Dark Environments

Includes a built-in LED light to assist when working in low-light or confined spaces.

Product Specifications

• Model: PS806B
• Device Type: Wire tracker and cable tracer (transmitter and receiver)
• Compatible Cables: Cat5, Cat5e, Cat6, UTP, STP, telephone, and low voltage electrical wires
• Connector Types: RJ45, RJ11, and alligator clips
• Maximum Transmission Distance: Up to 2 km
• Transmitter Frequency: 200 Hz
• Receiver Frequency: 200 kHz
• Signal Output: 8Vp-p multi frequency impulse
• Power Source: DC 9V battery (for both transmitter and receiver)
• Operating Current:
  • Transmitter: Less than or equal to 10 mA
  • Receiver: Less than or equal to 30 mA
• Voltage Protection: AC 60V and DC 42V
• Receiver Features: Adjustable sensitivity, LED indicators, audible tone, earphone jack
• Additional Features: Dual tone mode, anti interference design, low voltage alert, built in flashlight
• Transmitter Dimensions: Approximately 150 mm x 37 mm x 20 mm
• Receiver Dimensions: Approximately 122 mm x 45 mm x 23 mm
