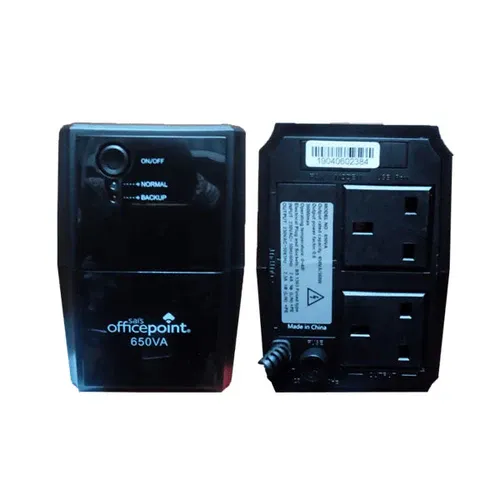

OfficePoint 650VA Back-Up UPS (03UPS0001)

The OfficePoint 650VA Back-Up UPS (03UPS0001) is a reliable line-interactive uninterruptible power supply designed to protect essential home and office electronics from power outages, surges, and voltage fluctuations. With a capacity of 650VA / 390W, it is ideal for desktop computers, routers, and small office equipment. Featuring Automatic Voltage Regulation (AVR), fast transfer time, and intelligent battery management, this UPS ensures stable performance and dependable backup power during unexpected interruptions.

Product Features

Line-Interactive Technology with AVR

Automatically stabilizes voltage fluctuations by boosting low voltage and reducing high voltage without switching to battery power, extending battery life.

Reliable Power Backup

Provides consistent backup power for essential devices such as desktop PCs, routers, and office equipment during outages.

Fast Transfer Time

Ensures seamless switching to battery mode within milliseconds, preventing data loss and system interruptions.

Multiple Output Options

Offers flexible outlet configurations depending on the variant, including universal sockets or multiple outlets with battery backup and surge protection.

Intelligent Battery Management

Optimizes battery performance with precision charging and early warning notifications for battery replacement.

Advanced Protection Systems

Protects against overloads, short circuits, surges, overcharging, and deep discharge to safeguard connected devices.

User-Friendly Indicators

LED indicators and audible alarms provide clear status updates for line mode, battery mode, and fault conditions.

Product Specifications

• Capacity: 650VA / 390W (some variants 360W–375W)
• Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
• Input Voltage Range: 140–300 VAC
• Nominal Input Voltage: 230V AC
• Frequency Range: 50/60 Hz auto-sensing
• Transfer Time: 2–6 ms typical, 10 ms maximum
• Output Waveform: Simulated Sine Wave (square wave in battery mode)
• Battery Type: 1 × 12V / 7Ah Sealed Lead-Acid
• Backup Time: Approximately 10–15 minutes (depending on load)
• Recharge Time: 6–8 hours to 90% capacity
• Outlets: 2 universal sockets or up to 8 outlets (4 battery backup + surge, 4 surge only)
• Dimensions (D x W x H): Approximately 280 × 100 × 143 mm
• Net Weight: 4.0–4.9 kg
• Noise Level: Less than 40 dB
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 0–90% RH (non-condensing)
• Communication Ports: USB, RJ-11/RJ-45 data line protection
• LED Indicators: Green (Line Mode), Yellow (Battery Mode), Red (Fault)
• Audible Alarms: Battery Mode (every 10s), Low Battery (every 1s), Fault (continuous)
