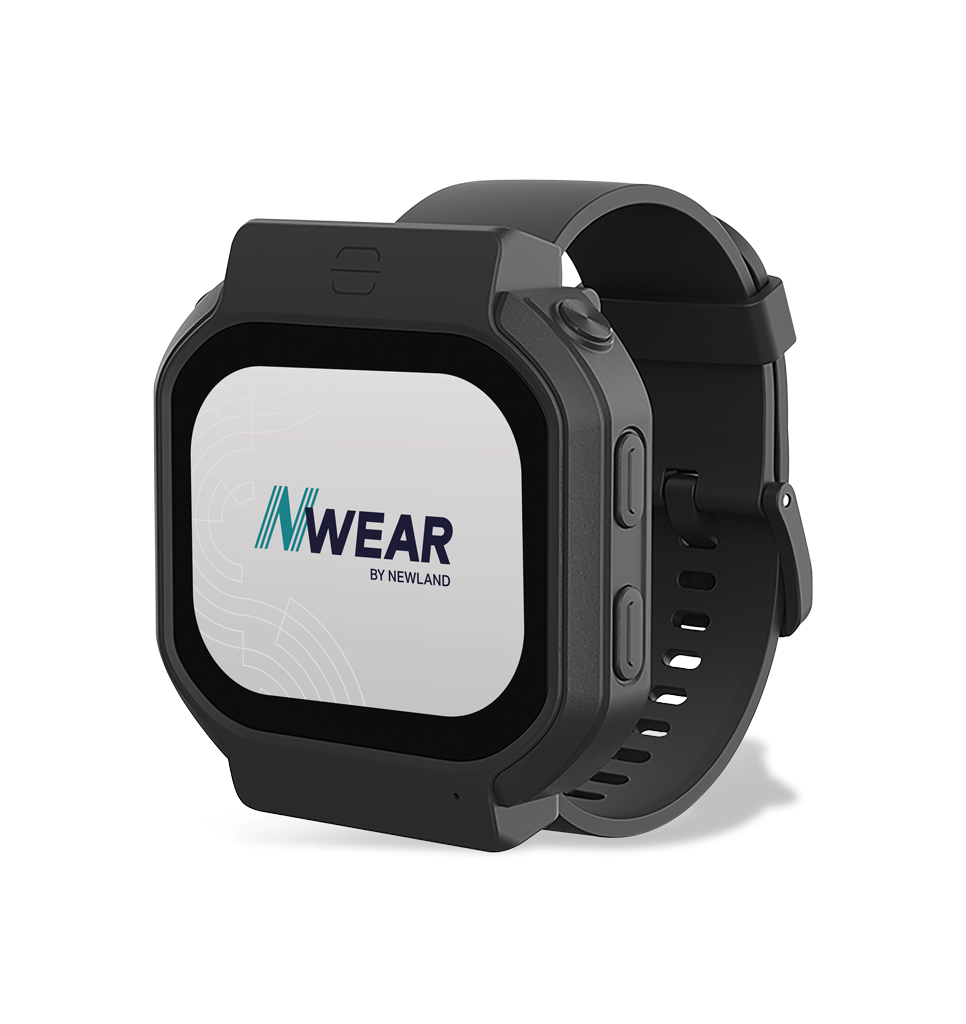

Newland WD5 Industrial Smartwatch (NLS-WD5-ISW)

The Newland WD5 Industrial Smartwatch (NLS-WD5-ISW) is a rugged, enterprise-grade wearable device designed to enhance productivity, safety, and real-time data access in demanding industrial environments. Combining advanced barcode scanning, high-speed connectivity, and smart wearable design, it enables hands-free operations for workers in logistics, warehousing, retail, healthcare, and field services. Powered by Android 13 and a high-performance octa-core processor, the WD5 delivers seamless performance for mission-critical applications while keeping teams connected and informed in real time.

Product Features

Integrated Barcode Scanning and Image Capture

The WD5 combines high-precision 1D and 2D barcode scanning with a 13 MP autofocus camera, enabling fast data capture and visual documentation in a single wearable device.

High-Performance Android Platform

Running on Android 13 with a 2.0 GHz octa-core processor, the smartwatch delivers smooth multitasking, reliable application performance, and enterprise-grade system stability.

Ultra-Fast Wireless Connectivity

Equipped with WiFi 6 and Bluetooth 5.1, the device ensures fast, stable, and energy-efficient communication across industrial networks and connected systems.

Real-Time Operational Visibility

Designed for workforce optimization, the smartwatch enables real-time access to production data, inventory updates, and supply chain information directly from the wrist.

Rugged Industrial Design

With IP67 protection, 1.5-meter drop resistance, and wide temperature tolerance, the device is built to withstand harsh industrial and outdoor environments.

Advanced NFC and RFID Support

Supports multiple RFID standards including ISO14443, ISO15693, MIFARE, and NFC Forum tags for secure identification, tracking, and authentication.

Lightweight and Ergonomic Wearable Form Factor

Weighing only 81 grams including the battery, the smartwatch is designed for all-day comfort while maintaining durability and industrial-grade performance.

Product Specifications

• Model: NLS-WD5-ISW
• Operating system: Android 13
• Processor: 2.0 GHz octa-core 64-bit
• Memory: 4 GB RAM, 64 GB flash storage
• Display: 2.06-inch AMOLED, 410 x 502 resolution, 480 nits brightness, multi-touch support
• Dimensions: 265 mm (W) x 58 mm (D) x 19 mm (H), wristband width 24 mm
• Weight: 81 g including battery
• Battery: 3.85 V, 1200 mAh
• Barcode symbologies supported:
  • 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, ITF variants, ISBN, Code 93, GS1 Databar, MSI Plessey, and others
  • 2D: QR Code, Data Matrix, PDF417
• Image sensor: 800 x 640 CMOS
• Aiming system: Red LED
• Depth of field:
  • Code 39 (5 mil): 65 mm to 150 mm
  • Data Matrix (10 mil): 55 mm to 120 mm
  • EAN-13 (13 mil): 65 mm to 295 mm
  • PDF417 (6.7 mil): 60 mm to 120 mm
  • QR Code (15 mil): 35 mm to 180 mm
• Camera: 13 MP rear camera with autofocus
• Connectivity:
  • WiFi 6 (802.11 a/b/g/n/ac/ax, dual-band 2.4 GHz and 5 GHz)
  • Bluetooth 5.1
  • NFC / RFID support
• RFID standards: ISO14443A/B, ISO15693, MIFARE, FeliCa, NFC Forum tags (Type 1–4)
• Sensors: Magnetic sensor, gyroscope, accelerometer
• Notifications: Speaker and vibration alerts
• Buttons: 4 physical keys
• Interface: Pogo pin charging interface
• Drop resistance: 1.5 meters (six-sided testing)
• IP rating: IP67
• ESD protection: ±6 kV direct discharge, ±10 kV air discharge
• Operating temperature: -20°C to 50°C
• Storage temperature: -30°C to 60°C
• Humidity: 5 percent to 95 percent non-condensing
• Software tools: Ndevor configuration and MDM platform
• Included in box: WD5 smartwatch, wristband, USB-C cable, charging cradle
• Applications: Retail, hospitality, healthcare, logistics, warehousing, transportation, field service, and utilities
