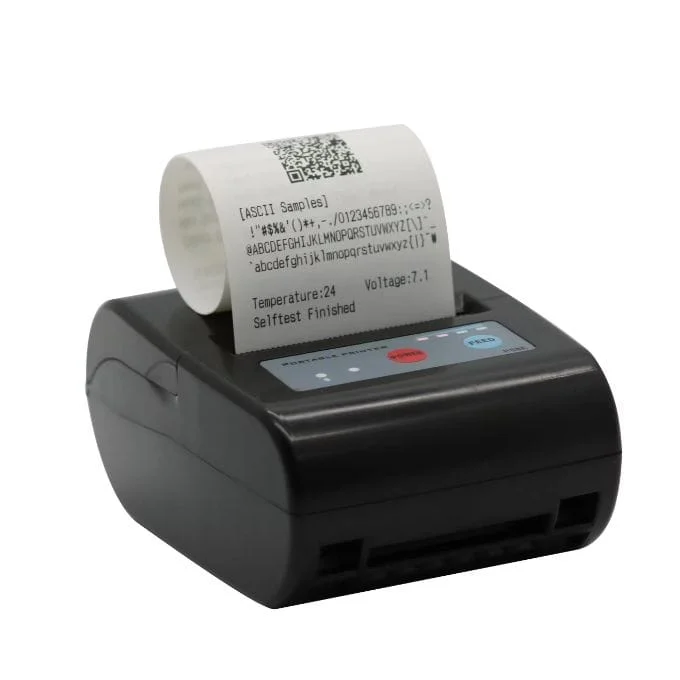

Mobile Thermal Receipt Printer (58P1)

The 58P1 Mobile Thermal Receipt Printer is a compact and portable device designed for on‑the‑go Point of Sale (POS) transactions. Ideal for delivery services, retail shops, food vendors, and other mobile business environments, this printer uses direct thermal technology that eliminates the need for ink or toner. With versatile Bluetooth and USB connectivity, support for standard 58mm thermal paper, and the ability to print text, images, and barcodes, it delivers reliable performance for mobile receipt printing needs.

Product Features

Direct Thermal Printing

The 58P1 uses direct thermal technology for fast, dependable printing without the cost or maintenance of ink or toner.

Portable Design

Featuring a lightweight, compact form factor and a rechargeable lithium battery, this printer supports extended mobile use and easy transport.

Versatile Connectivity

Equipped with Bluetooth and USB interfaces, it connects seamlessly with Android, iOS, and Windows devices for flexible point‑of‑sale integration.

Efficient Paper Handling

Supports standard 58mm thermal paper rolls with a maximum diameter of 40mm, and uses a “clamshell” easy‑loading design with a manual tear‑off cutter for quick paper changes.

Barcode and Graphics Support

Capable of printing 1D and 2D barcodes, QR codes, and custom images or logos, making it suitable for receipts, tickets, and promotional uses.

Power and Battery Management

A built‑in rechargeable lithium battery delivers extended use between charges, supported by smart power‑saving features like auto‑sleep and auto‑wake.

Product Specifications

• Print Method: Direct Thermal Dot Line Printing
• Print Resolution: 203 DPI (8 dots/mm)
• Print Speed: 50–90 mm/s
• Print Width: 48 mm (384 dots per line)
• Thermal Print Head Life: 50 km–100 km total print length
• Compatible Operating Systems: Android, iOS, Windows, Linux
• Control Commands: ESC/POS compatible
• Dimensions: Approx. 119.3 × 81.5 × 47 mm
• Weight: ~190g–282g (excluding paper roll)
• Battery: 7.4V Li‑ion 1500–2000mAh
• Charging: USB Type‑C or DC 9V/1.5A; full charge in 2–4 hours
• Paper Width: 57mm ±0.5mm, Max Roll Diameter: 40mm
• Paper Loading: Clamshell easy‑loading design
• Cutter: Manual tear‑off with serrated blade
• Connectivity: Bluetooth 4.0 dual‑mode, USB, optional RS‑232 (Serial)
• Fonts & Characters: ASCII Font A (12×24), Font B (9×17); supports custom bitmap/logo downloads up to 64K
• App Compatibility: Works with standard POS apps (e.g., Loyverse, iREAP, Kyte)
• Operating Temperature: -10°C to 50°C
• Operating Humidity: 10%–90% RH
• Drop Resistance: Rated for drops up to 1.2 meters
