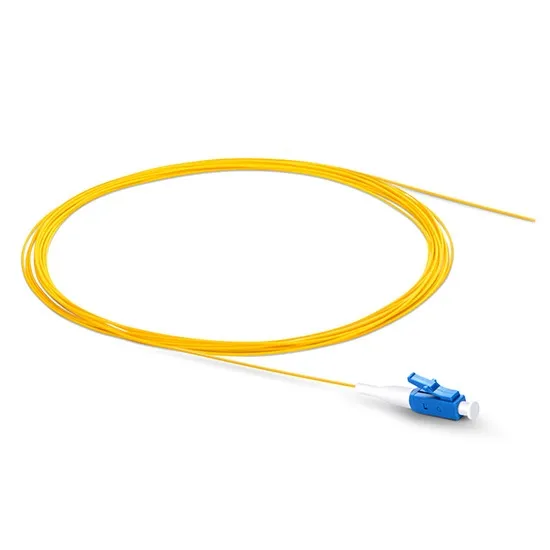

Lightwave Fiber Pigtail LC UPC Single Mode 2M (LW-PT-LCU-SM)

The Lightwave LW-PT-LCU-SM is a high-performance single-mode fiber optic pigtail designed for low-loss, reliable terminations in data centers, enterprise LANs, and telecommunications networks. Featuring an LC UPC connector and a 2-meter LSZH jacketed cable, this pigtail ensures superior signal integrity while maintaining safety in indoor installations. Its precise zirconia ferrule and G.652.D single-mode fiber provide stable, high-speed connections, making it ideal for FTTH deployments, splice trays, and fiber distribution frames.

Product Features

Precision LC UPC Connector

Factory-polished Ultra Physical Contact (UPC) connector reduces back reflections and maintains low insertion loss for mission-critical networks.

Single-Mode Fiber

OS2 G.652.D compliant fiber optimized for 1310 nm and 1550 nm wavelengths, supporting long-distance, high-bandwidth applications.

LSZH Safety Jacket

Low Smoke Zero Halogen jacket ensures fire-retardant performance and safe indoor routing in data centers and enterprise environments.

Durable and Flexible Design

900 μm tight-buffered cable with a minimum bend radius of 10 mm and tensile strength up to 10 N allows high-density routing without signal degradation.

Reliable Performance

Low insertion loss (≤0.3 dB) and high return loss (≥55 dB) guarantee stable and efficient connections in high-demand network setups.

Product Specifications

• Brand: Lightwave
• Connector Type: LC UPC (Ultra Physical Contact)
• Fiber Type: OS2 Single-Mode (9/125 µm), ITU-T G.652.D compliant
• Length: 2 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Insertion Loss: Typical ≤0.15 dB; Maximum 0.2–0.3 dB
• Return Loss: ≥55 dB
• Ferrule Material: Precision zirconia ceramic
• Cable Diameter: 0.9 mm tight-buffered
• Minimum Bend Radius: 10 mm
• Tensile Strength: Up to 10 N
• Durability: Rated for up to 500 mating cycles
• Operating Temperature: -40°C to +75°C
• Compliance: IEC 61754-20 (LC interface), TIA-604-10-B (FOCIS 10), RoHS
• Weight: ~15 grams
• Installation: Pre-polished connector, color-coded buffer for easy fiber identification
