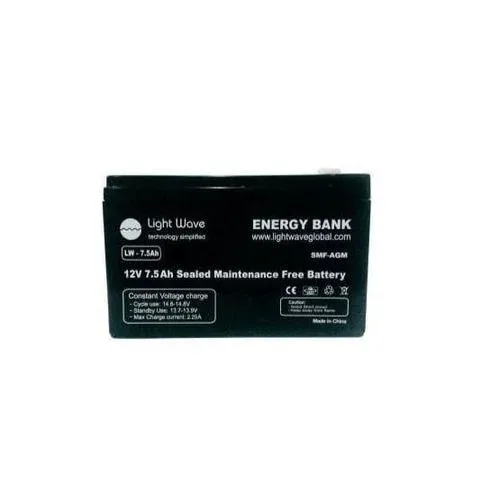

Lightwave 12V/7.5Ah UPS Battery – High Performance SMF Battery (LW 7AH)

The Lightwave LW 7AH is a high-performance, maintenance-free sealed lead-acid (SMF) battery designed for reliable backup power across UPS systems, security alarms, emergency lighting, and small electric vehicles. With a nominal voltage of 12V and a capacity of 7.5Ah, this compact yet powerful battery ensures long-lasting performance, efficient energy delivery, and robust reliability in both standby and cyclic applications.

Product Features

High-Performance SMF Design

Valve-Regulated Lead-Acid (VRLA) technology with Absorbent Glass Mat (AGM) ensures spill-proof, maintenance-free operation and high-efficiency energy discharge.

Wide Application Range

Ideal for home and office UPS systems, CCTV security systems, emergency lighting, solar standby power, and small electric vehicles like scooters and toys.

Durable and Compact

Constructed with flame-retardant ABS plastic, the LW 7AH is lightweight (2.25–2.4 kg) and compact (151 × 65 × 94 mm), making it easy to install in tight spaces.

Efficient Charging

Supports cycle use charging at 14.4V–15.0V and standby/float charging at 13.5V–13.8V, maintaining optimal capacity and long battery life.

High Discharge Capability

Can handle short bursts up to 112A for 5 seconds, providing reliable performance during high-load events.

Long Service Life

Designed for 3–5 years of standby operation with over 500 cycles at 50% depth of discharge, offering dependable performance over time.

Low Self-Discharge

Maintains charge with less than 3% self-discharge per month at 25°C, ideal for backup applications and storage.

Secure Terminal Options

Available with F1 (4.75 mm) or F2 (6.35 mm) Faston Tab terminals for secure and easy connection to devices.

Product Specifications

• Model: Lightwave LW 7AH / 1275
• Nominal Voltage: 12V DC
• Nominal Capacity: 7.5Ah at 20-hour discharge rate
• Energy Storage: Approx. 90 Wh
• Internal Resistance: 18–25 mΩ (fully charged)
• Max Discharge Current: 112A for 5-second bursts
• Terminal Type: F1 (4.75 mm) or F2 (6.35 mm) Faston Tab
• Case Material: Flame-retardant ABS plastic (UL94-V0 or UL94-HB)
• Charging Parameters:
  • Cycle Use: 14.4–15.0V at 25°C
  • Float/Standby Use: 13.5–13.8V at 25°C
  • Max Charging Current: 2.25–2.7A
• Operating Temperature:
  • Discharge: -15°C to 50°C
  • Charge: 0°C to 40°C
• Self-Discharge Rate: <3% per month at 25°C
• Dimensions: 151 × 65 × 94 mm (100 mm total height including terminals)
• Weight: 2.25–2.4 kg
• Service Life: 3–5 years (standby), up to 500+ cycles at 50% DOD
• Shelf Life: Up to 6 months at 25°C without refresh charge
