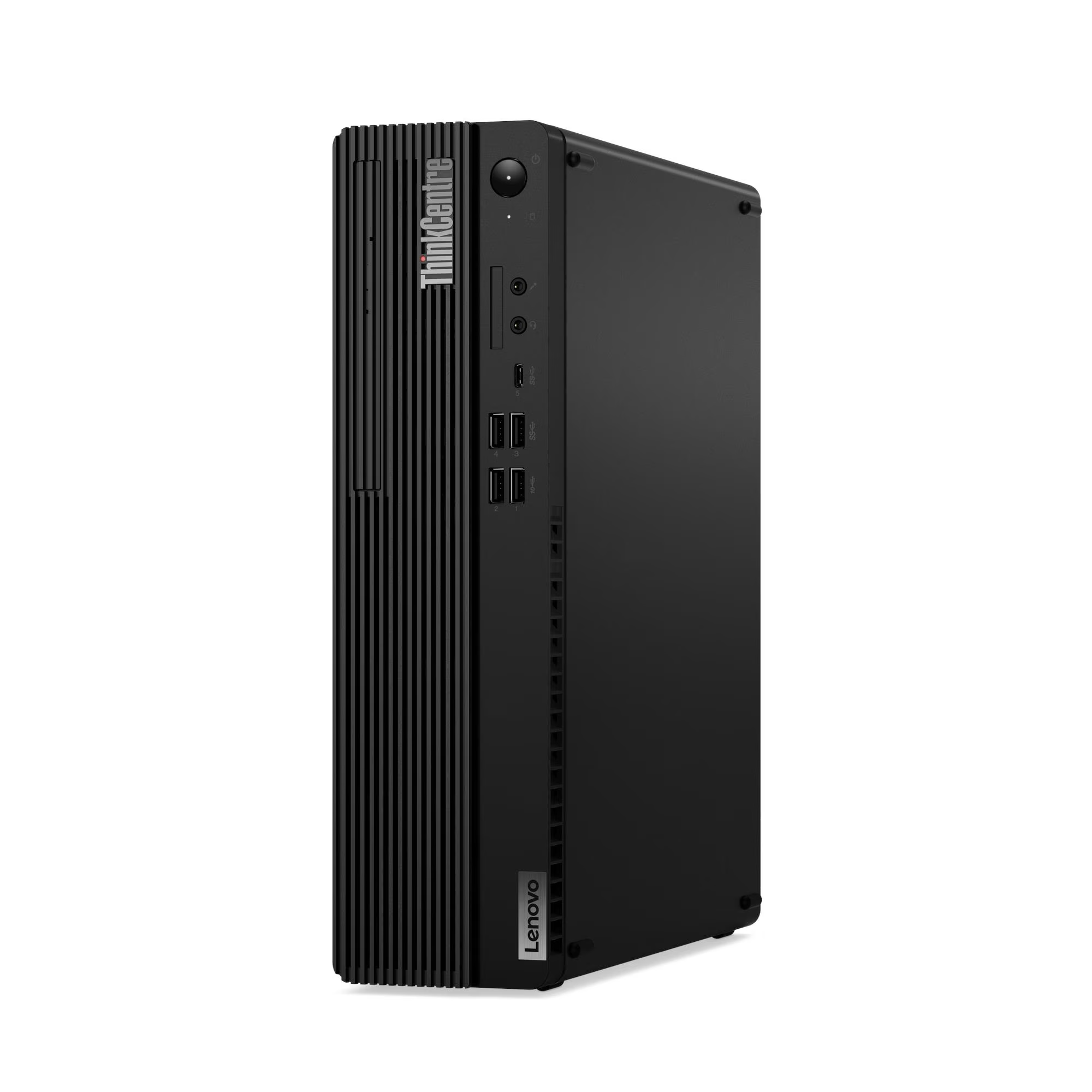

Lenovo ThinkCentre M70s Gen 5 SFF Intel Core i7 13700 8GB DDR5 512GB SSD (12U80080UM)

The Lenovo ThinkCentre M70s Gen 5 Small Form Factor (SFF) desktop (12U80080UM) is a compact, high-performance business PC designed for professional office environments. Powered by the 14th Gen Intel Core i7-13700 processor with 16 cores (8 Performance + 8 Efficient) and 24 threads, it delivers exceptional multitasking capabilities and fast processing for productivity workloads. Equipped with 8GB DDR5-5600 memory, a 512GB M.2 NVMe SSD, and integrated Intel UHD Graphics 770, this SFF desktop provides reliable performance in a compact 8.2L chassis while supporting enterprise-grade security and modern connectivity.

Product Features

Powerful 14th Gen Intel Core i7 Processor

Intel Core i7-13700 with 16 cores (8P + 8E) and 24 threads, Max Turbo up to 5.2GHz, P-core 2.1–5.1GHz, E-core 1.5–4.1GHz, and 30MB Intel Smart Cache. Optimized for demanding office applications, multitasking, and professional workloads.

High-Speed DDR5 Memory

Includes 8GB DDR5-5600 UDIMM RAM, dual-channel capable, expandable up to 64GB across two UDIMM slots for future-proof performance.

Fast and Secure Storage

512GB M.2 2280 PCIe 4.0×4 NVMe SSD with Opal 2.0 hardware-based encryption for secure and fast storage access. Supports up to three drives (1x 3.5″ HDD, 1x 2.5″ HDD, 1x M.2 SSD).

Integrated Intel UHD Graphics 770

Delivers stable graphics performance for office applications, video conferencing, and dual-display setups via HDMI and DisplayPort.

Compact SFF Chassis

8.2L Small Form Factor design with dimensions of 92.5 x 297.7 x 339.5 mm, weighing approximately 5.3 kg. Ideal for space-constrained offices or desktops. Tool-less chassis access allows easy upgrades.

Enterprise-Grade Security

Discrete TPM 2.0 (TCG and FIPS 140-2 certified), Kensington Security Slot, and Padlock Loop ensure data and device protection.

Connectivity & Ports

• Front Ports: 1x USB-C (5Gbps / 3.2 Gen 1) with 15W charging, 4x USB-A (5Gbps / 3.2 Gen 1), 1x headphone/mic combo, 1x mic.
• Rear Ports: 4x USB-A 2.0, 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a, 1x RJ-45 Ethernet.
• Wireless: Intel Wi-Fi 6E AX211 and Bluetooth 5.3 with vPro Enterprise management.

Reliability and Certifications

• MIL-STD-810H tested for temperature, shock, vibration, humidity, and dust.
• Energy-efficient 260W PSU with 90% efficiency.
• Certified: ErP Lot 3, GREENGUARD®, RoHS compliant, TCO Certified 9.0.

Accessories and Warranty

Comes with a USB Traditional Keyboard (UK) and USB Calliope Mouse. Ships with a 3-year Courier/Carry-in warranty upgrade from the base 1-year warranty.

Product Specifications

• Model/Part Number: 12U80080UM
• Processor: Intel Core i7-13700 (16C/24T, Max Turbo 5.2GHz, 30MB Smart Cache)
• Graphics: Integrated Intel UHD Graphics 770
• Memory: 8GB DDR5-5600 UDIMM, expandable to 64GB
• Storage: 512GB M.2 2280 PCIe 4.0×4 NVMe SSD (Opal 2.0), supports up to 3 drives
• Chipset: Intel Q670
• Audio: HD Audio, Realtek ALC623-CG codec, 1W internal speaker
• Expansion Slots: 1x PCIe 3.0 x16, 1x PCIe 3.0 x1, 2x M.2 slots
• Security: TPM 2.0, Kensington lock, padlock loop
• Form Factor: SFF (8.2L)
• Dimensions: 92.5 x 297.7 x 339.5 mm
• Weight: ~5.3 kg
• Operating System: None (FreeDOS, user-installed OS)
• Certifications: MIL-STD-810H, TCO 9.0, RoHS, GREENGUARD®, ErP Lot 3
