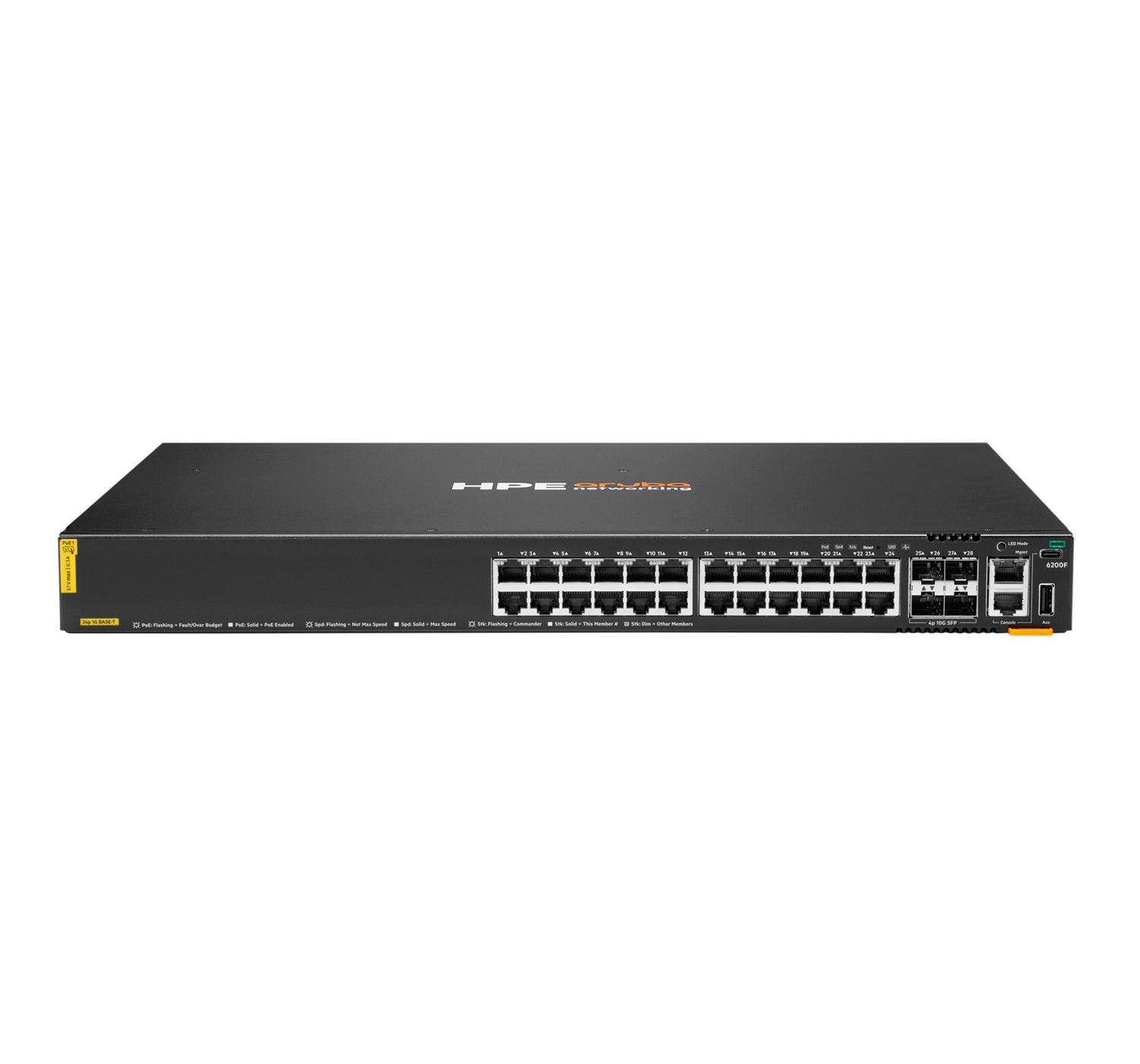

HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch (JL725B)

The HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch (JL725B) is a next-generation enterprise access switch designed for branch offices, campuses, and SMB environments requiring high performance, scalability, and secure connectivity. Built on the Aruba CX platform, it delivers advanced Layer 2 and Layer 3 capabilities, intelligent automation, and cloud-ready management options. With 24 Gigabit Ethernet PoE-enabled ports and 4 high-speed SFP+ uplinks, this switch provides reliable wired access, efficient power delivery, and flexible network expansion for modern business demands.

Product Features

High-Performance Enterprise Connectivity

The switch provides reliable, high-speed networking with enterprise-grade switching capacity and low latency performance, ensuring smooth data transfer for business-critical applications, VoIP, and cloud workloads.

Advanced PoE and Device Power Support

With up to 370W Class 4 PoE power budget, the switch supports IEEE 802.3af and IEEE 802.3at standards, enabling seamless powering of access points, IP phones, surveillance cameras, and IoT devices directly through the network ports.

High-Speed Uplink Flexibility

Equipped with 4 SFP+ ports supporting up to 10G uplinks, the switch enables high-bandwidth connectivity to core networks, aggregation switches, and data centers, reducing bottlenecks and improving scalability.

Intelligent Network Automation and Visibility

The Aruba CX platform includes a built-in analytics engine that delivers real-time insights into network performance and health. This helps IT teams detect issues faster, optimize traffic flow, and maintain network stability.

Scalable Stackable Architecture

Supports up to 8-member Virtual Stacking Framework (VSF), allowing businesses to scale network capacity easily while simplifying management and maintaining high availability across connected switches.

Enhanced Security and Dynamic Segmentation

Built-in security features include access control lists and application-based policies that enable dynamic segmentation. This ensures secure access for users, devices, and IoT endpoints across the network.

Product Specifications

• Product Name: HPE Aruba Networking CX 6200F 24G Class 4 PoE 4SFP+ 370W Switch (JL725B)
• Switch Type: Managed Layer 2/Layer 3 Access Switch
• Ports: 24 x 10/100/1000BASE-T PoE ports
• Uplink Ports: 4 x 100M/1G/10G SFP+ ports
• PoE Support: IEEE 802.3af, IEEE 802.3at (Class 4 PoE)
• Total PoE Budget: Up to 370W
• Switching Capacity: 128 Gbps
• Throughput: Up to 95.2 Mpps
• Latency: 2.28 μs (1 Gbps), 1.46 μs (10 Gbps)
• Stacking Support: Up to 8 switches (VSF)
• CPU: Quad-core Arm Cortex-A72 @ 1.8 GHz
• Memory: 8 GB DDR4
• Flash Storage: 16 GB eMMC
• Management Interfaces: Aruba Central, Web GUI, CLI, Multi-Edit Software
• Console Ports: USB-C console, RJ-45 console
• USB Ports: USB Type-A host port
• OOB Management: Yes
• Power Supply: Fixed internal power supply
• Power Consumption: 65W at 230 VAC
• Input Voltage: 100V–120V / 200V–240V
• Operating Temperature: 0°C to 45°C (32°F to 113°F), altitude adjusted
• Cooling: Fixed fans
• Weight: Up to 5.10 kg
• Dimensions: 4.39 x 44.2 x 32.7 cm
• Stacking Features: Virtual Switching Framework (VSF)
• Security Features: ACLs, dynamic segmentation, role-based policies
• Deployment Use: Enterprise branch, campus, SMB networks
