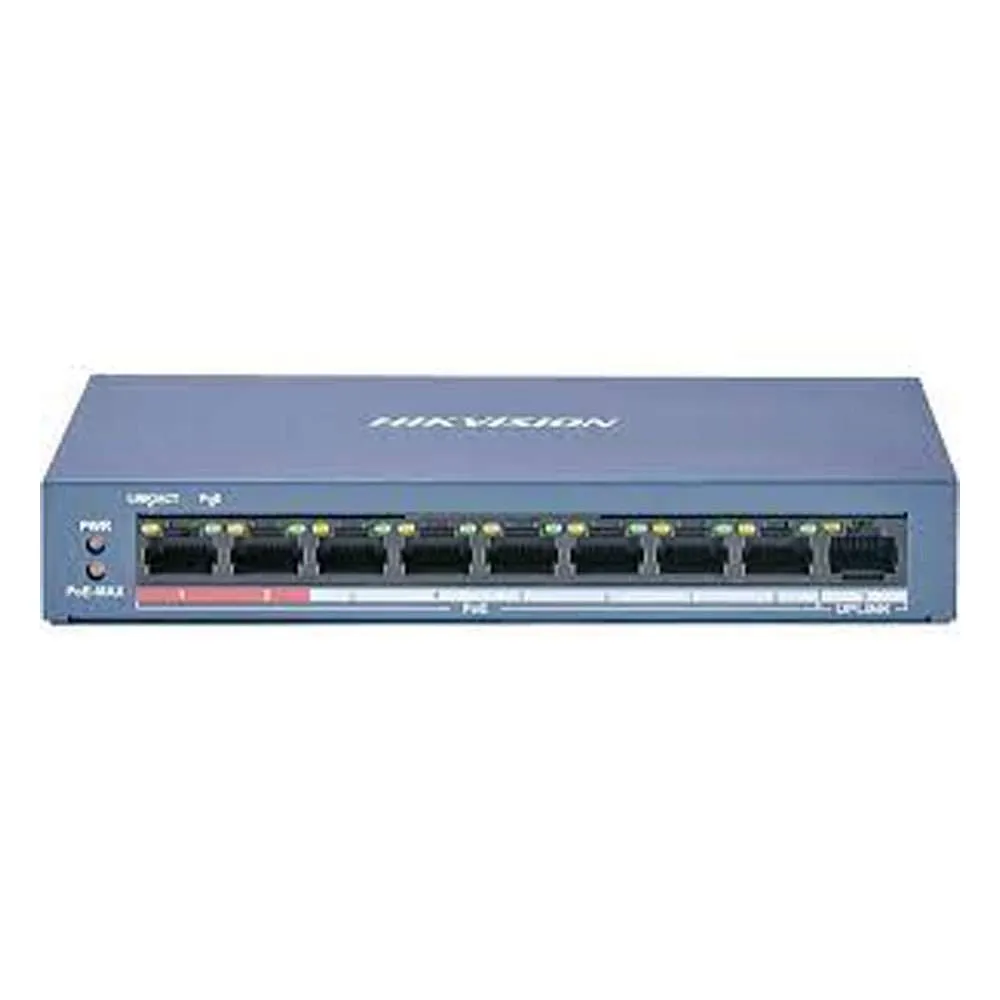

Hikvision DS-3E0109P-E/M(B) 8-Port 100Mbps Unmanaged PoE Switch
The Hikvision DS-3E0109P-E/M(B) is an 8-port Fast Ethernet unmanaged PoE switch designed for stable, long-range video transmission and intelligent power management. With support for extended PoE distances, adaptive power supply, and surge protection, this switch is ideal for surveillance systems requiring reliable connectivity and efficient power distribution. Its VIP port design ensures that critical data is prioritized during network congestion, making it perfect for professional security applications.
Product Features
Intelligent PoE Management
PoE ports intelligently manage power distribution when limits are exceeded, protecting devices and extending the switch’s operational lifetime.
Up to 300 m Long Range PoE Transmission
Supports PoE transmission distances of up to 300 meters, enabling flexible placement of IP cameras without additional power sources.
4/8-Core Adaptive Power Supply with Less Power Loss
The 8-core adaptive power design reduces power loss over cables, ensuring consistent performance and energy efficiency.
6KV Surge Protection to Improve Reliability in Harsh Environments
Built-in surge protection safeguards the switch from sudden lightning surges and other electrical hazards, enhancing reliability.
Design for Video Transmission
VIP port prioritizes critical video data during network congestion, ensuring smooth and uninterrupted video streaming.
Product Specifications
- Shell: Metal
- Net Weight: 0.35 kg (0.77 lb)
- Gross Weight: 0.89 kg (1.96 lb)
- Dimensions (W × H × D): 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 1.35 A
- Max. Power Consumption: 65 W
- Power Consumption in Idle: 5 W
- Installation Mode: Desk-Mounted, Wall-Mounted
- Surge Protection: 6 KV
- Ports: 8 × 10/100 Mbps PoE, 1 × 10/100 Mbps RJ45
- MAC Address Table: 2 K
- Switching Capacity: 1.8 Gbps
- Packet Forwarding Rate: 1.34 Mpps
- Internal Cache: 1 Mbit
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: 8-pin (1/2(-), 3/6(+), 4/5(+), 7/8(-))
- PoE Ports: Ports 1 to 8
- Max. Port Power: 30 W
- PoE Power Budget: 60 W
- Long Range: Ports 1 to 8 up to 300 m (dependent on camera model or cable condition)
- EMC Approval: FCC, CE-EMC, IC, RCM
- Safety Approval: UL, CB, CE-LVD
- Chemistry Compliance: CE-RoHS, WEEE, REACH
