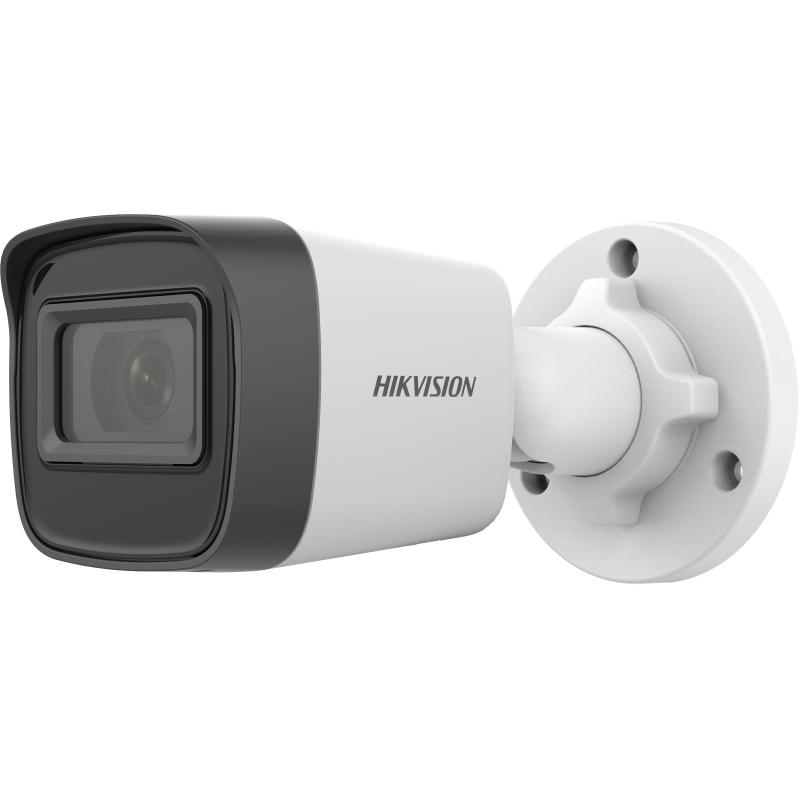

Hikvision DS-2CD1021G0-I 2MP Fixed Bullet Network Camera

The Hikvision DS-2CD1021G0-I is a compact, high-performance 2MP fixed bullet network camera designed for both indoor and outdoor surveillance applications. Featuring a robust IP67-rated housing, it offers reliable protection against dust and water, making it ideal for harsh environments. With Power over Ethernet (PoE) support, installation is simple and efficient, reducing the need for extra cabling. This camera delivers high-quality 1080p video with advanced image enhancement, wide dynamic range, and infrared night vision for clear monitoring around the clock. Its flexibility, reliability, and intelligent video features make it a practical choice for homes, offices, and small-to-medium commercial installations.

Product Features

High-Resolution Imaging

Equipped with a 1/2.9″ Progressive Scan CMOS sensor, the camera captures clear 2MP (1920 × 1080) video, even in low-light conditions.

Durable Outdoor Design

IP67-rated housing ensures water and dust resistance, making the camera suitable for outdoor deployment in various weather conditions.

Flexible Lens Options

Offers fixed focal lengths of 2.8 mm (horizontal FOV 94°) and 4 mm (horizontal FOV 80°), with adjustable pan, tilt, and rotation for precise coverage.

Infrared Night Vision

Built-in IR illuminator provides up to 20 meters of night vision, with smart IR technology for consistent brightness without overexposure.

Advanced Video Compression

Supports H.265+/H.265/H.264+/H.264 encoding for efficient storage and bandwidth usage without compromising video quality.

Intelligent Video Features

Includes motion detection, digital WDR, BLC, HLC, and 3D DNR for enhanced image clarity in challenging lighting environments.

Network and Remote Access

Supports up to 32 users with secure authentication, TCP/IP, ICMP, DHCP, DNS, RTSP protocols, and remote viewing via iVMS-4200 client software or compatible web browsers.

Easy Installation with PoE

IEEE 802.3af PoE support allows power and data transmission over a single Ethernet cable for streamlined installation.

Product Specifications

• Image Sensor: 1/2.9″ Progressive Scan CMOS
• Maximum Resolution: 1920 × 1080
• Minimum Illumination: Color: 0.01 Lux (F2.2, AGC ON), B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Lens Type: Fixed focal lens, 2.8 mm or 4 mm optional
• Focal Length & FOV:
  • 2.8 mm: H 94°, V 51°, D 112°
  • 4 mm: H 80°, V 44°, D 94°
• DORI Distance:
  • 2.8 mm: D 48 m, O 19 m, R 9 m, I 4 m
  • 4 mm: D 55 m, O 22 m, R 11 m, I 5 m
• IR Illuminator Range: Up to 20 m, 850 nm, smart IR enabled
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: Main Stream: 1920 × 1080, 25/30 fps; Sub-Stream: 640 × 480/360, 25/30 fps
• Bit Rate Control: CBR, VBR
• Network Security: Password protection, authentication, watermarking, host verification
• User Support: Up to 32 users, 3 user levels (administrator, operator, user)
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
• Interface: 1 × RJ45 10/100 M self-adaptive Ethernet
• Audio: N/A
• Basic Event: Motion detection, exception alerts
• Power Supply: 12 VDC ±25%, max 5 W; PoE IEEE 802.3af, max 6.5 W
• Material: Plastic
• Dimensions: 138.8 × 60.9 × 57.9 mm (5.5 × 2.4 × 2.3 in)
• Weight: Approx. 175 g (0.4 lb); with package 250 g (1.1 lb)
• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Operating Humidity: ≤ 95% non-condensing
• Image Enhancement: Digital WDR, BLC, HLC, 3D DNR
• Approvals: CE-EMC, CB, CE-LVD, CE-RoHS, WEEE, REACH
• Protection Rating: IP67
