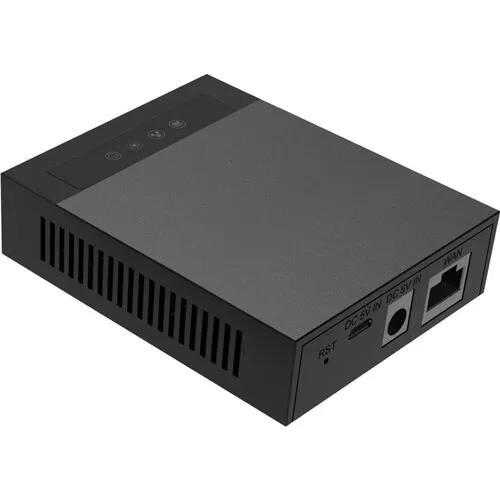

Fanvil GA10 Analog VoIP Gateway

The Fanvil GA10 is a compact SIP Analog Telephone Adapter (ATA) designed to connect traditional analog phones, fax machines, or legacy PBX systems to modern VoIP networks. Ideal for small businesses, home offices, hotels, and other environments transitioning to IP voice communication, it provides high-definition audio, multi-line support, and professional-grade call processing while allowing users to retain existing analog hardware. Its flexible power options and compact design make installation simple and convenient for both desktop and wall-mounted setups.

Product Features

Single FXS Port for Analog Devices

Connects one analog telephone or fax machine via an RJ11 port, enabling seamless integration with VoIP networks.

Dual SIP Lines

Supports up to 2 simultaneous SIP accounts for multi-line flexibility and efficient call handling.

HD Voice Quality

High-definition audio with wideband codecs including G.722 and Opus ensures crystal-clear communication.

3-Way Conferencing

Allows hosting of professional three-party audio calls, ideal for small team discussions or client meetings.

Flexible Power Options

Powered via a standard DC 5V/1A adapter or a Micro USB port, enabling convenient connectivity from computers or servers.

Compact and Versatile Design

Small form factor (85 × 68 × 22.7 mm) supports both desktop and wall-mounted installations.

Advanced Call Processing

Includes Acoustic Echo Canceller (AEC), Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Noise Reduction (NR), and Automatic Gain Control (AGC) to maintain consistent audio quality.

Robust DTMF and Fax Support

Supports multiple DTMF methods (In-band, RFC2833, SIP INFO) for IVR systems and T.38 / fax pass-through for legacy fax machines.

Network Security and Management

Supports SIP over TLS, SRTP encryption, HTTPS, 802.1x authentication, VLAN tagging (802.1p/q), and auto-provisioning via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, SIP PNP, and TR-069.

Product Specifications

• Network Interface: 1 × 10/100 Mbps Ethernet port
• Analog Port: 1 × RJ11 (FXS) supporting Loop Start and Kewl Start; disconnect via Busy Tone or Polarity Reversal
• Audio Codecs: G.711a/u, G.726, G.729A/B, iLBC, G.722, Opus
• Fax Support: T.38 and fax pass-through
• SIP Protocols: SIP v1 (RFC2543), SIP v2 (RFC3261) over UDP/TCP/TLS
• DTMF Support: In-band, RFC2833, SIP INFO
• Jitter Management: Dynamic adaptive jitter buffer and Packet Loss Concealment (PLC)
• IP Configuration: IPv4/IPv6 Dual Stack, Static IP, DHCP, PPPoE
• Security: SIP over TLS, SRTP, HTTPS, 802.1x, VLAN tagging (802.1p/q)
• Power Supply: DC 5V/1A adapter or Micro USB
• Power Consumption: 0.84–5.71W depending on usage
• Management: Web-based GUI, TR-069, auto-provisioning (FTP/HTTP/HTTPS), DHCP Option 66, SIP PNP
• Status Indicators: 4 LEDs for Power, Network, SIP State, and Call Status
• Physical Ports: 1 × RJ11 (FXS), 1 × RJ45 Ethernet, 1 × Micro USB (power), 1 × DC Port (Φ5.5 × 2.1 × 10mm)
• Dimensions: 85 × 68 × 22.7 mm
• Weight: Approximately 0.2 kg
• Operating Environment: 0°C to 45°C, 10–95% non-condensing humidity
