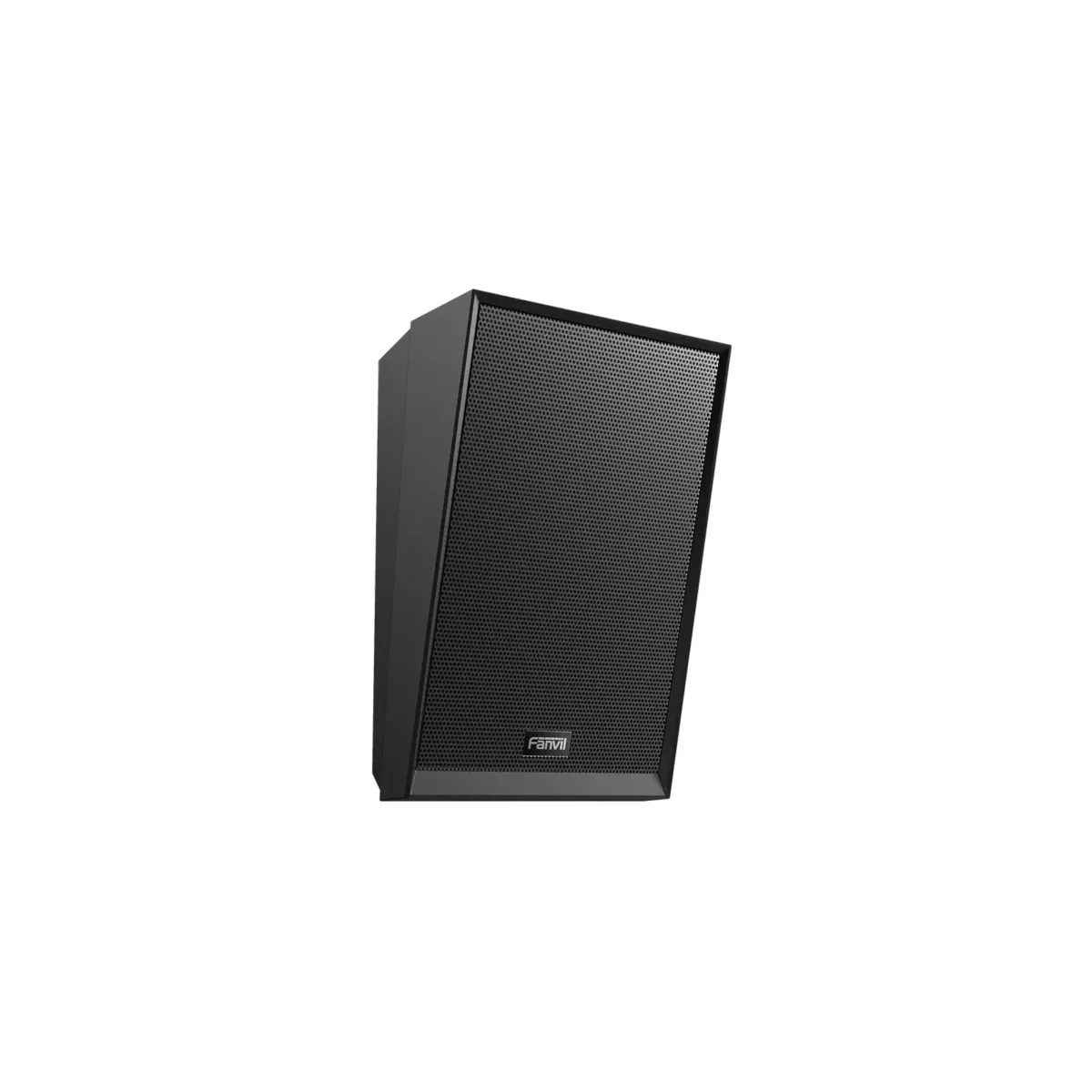

Fanvil A212 Wall-mounted Speaker

The Fanvil A212 Wall-mounted Speaker is a commercial-grade SIP-enabled audio solution designed for professional broadcasting and two-way intercom applications in environments such as schools, offices, hospitals, and public facilities. Combining high-definition audio performance with flexible integration capabilities, it functions as both a standalone communication device and a scalable component within unified communication and security systems. With powerful sound output, advanced management features, and seamless network connectivity, the A212 ensures reliable and efficient audio communication across various scenarios.

Product Features

Dual Broadcasting and Intercom Functionality

The A212 supports both public address broadcasting and two-way intercom communication, featuring a built-in omnidirectional microphone for clear voice capture.

High-Definition Audio Performance

Equipped with support for G.722 and Opus codecs, the speaker delivers HD voice quality and supports lossless playback of MP3 and WAV audio files.

Powerful and Expandable Audio Output

The built-in 15W speaker provides strong sound coverage, while an additional SPK port allows connection of a second 15W passive speaker for expanded audio reach.

Advanced SIP and Multicast Support

With support for 2 SIP lines and up to 20 multicast partitions, the device enables efficient multi-zone paging with priority management.

Security and Device Integration

Includes 3 short-circuit inputs and 1 output for integration with external devices such as sensors, alarms, and door locks, enhancing security and automation capabilities.

Flexible Power Options

Supports Power over Ethernet PoE and PoE Plus as well as a DC 24V power supply, allowing flexible and simplified installation.

Wide System Compatibility

Compatible with major SIP platforms such as 3CX, Asterisk, and Grandstream UCM, making it suitable for diverse communication infrastructures.

Centralized and Remote Management

Configuration and monitoring can be performed via a web interface, Fanvil Device Management System, or dedicated broadcast intercom applications.

Product Specifications

• Speaker power: 15W at 8 ohms
• Expandable speaker output: Additional 15W passive speaker supported
• Maximum sound pressure level: 105 dB
• Frequency response: 100 Hz to 20 kHz
• Sensitivity: 88 dB plus or minus 3 dB at 1 meter 1 watt
• Microphone type: Built-in omnidirectional microphone
• Audio codecs: G.722, Opus, G.711A and U, G.729A and B, iLBC, G.723, G.726-32K
• Audio formats: MP3 and WAV playback support
• SIP lines: 2
• Multicast zones: Up to 20 with priority management
• Network interface: 1 RJ45 10 and 100 Mbps
• Protocols: SIP 2.0 UDP TCP TLS, RTP RTCP SRTP, STUN, DHCP, IPv6, L2TP, OpenVPN, SNTP, TR-069
• Internal storage: 24 MB for audio files and scheduled tasks
• Security interfaces: 3 short-circuit inputs and 1 short-circuit output up to 30V 2A
• Video linkage: Supports integration with external IP cameras
• Power supply: PoE IEEE 802.3at Class 4 or DC 24V 2A
• Installation: Wall-mounted
• Dimensions: 184.85 mm by 275.38 mm by 124.56 mm
• Weight: Approximately 2.3 kg
• Operating environment: Suitable for indoor commercial use
