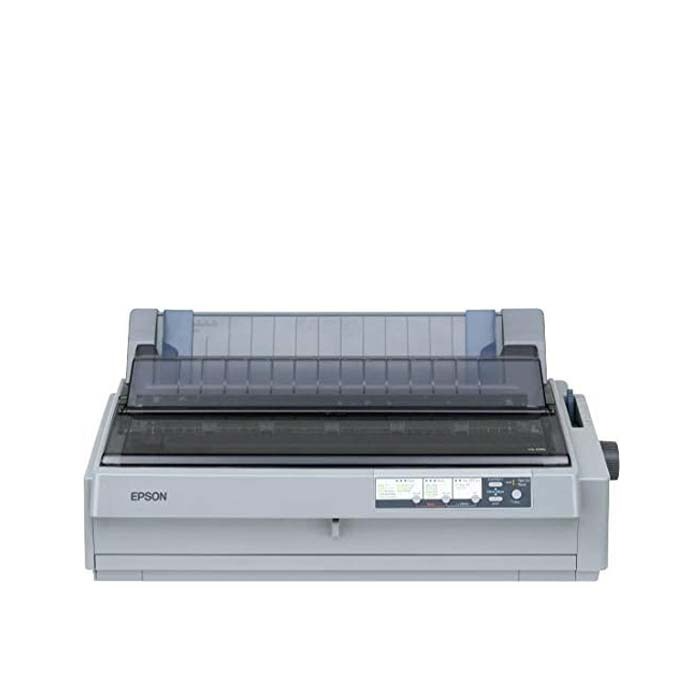

Epson LQ-2190 24-Pin Dot Matrix Printer (C11CA92001A0)

The Epson LQ-2190 (C11CA92001A0) is a high-performance 24-pin dot matrix printer built for businesses requiring fast, reliable, and high-volume printing. With A3 printing capability, multi-part form support, and advanced paper handling options, it is ideal for invoices, receipts, and other multi-layer documents. Its robust design, high-speed output, and flexible connectivity make it a dependable choice for offices, warehouses, and industrial environments.

Product Features

High-Speed Printing

Achieves up to 576 characters per second in High-Speed Draft mode, providing fast throughput for large-volume printing tasks.

24-Pin Print Head

Offers 24 pins with 136-column capability for crisp text and high-quality output on both A4 and A3 documents.

Multi-Part Form Support

Prints up to 6-part forms (1 original + 5 copies) simultaneously, making it ideal for invoices, delivery notes, and order forms.

Flexible Paper Handling

Supports multiple feed paths including front, rear, top, and bottom, along with continuous and single-sheet media.

Print Speed Enhancer

Optimizes the printing of bit images under Windows environments for faster output without sacrificing quality.

Connectivity Options

Includes USB 2.0 and bidirectional parallel interfaces, with optional Ethernet and RS-232 connections for network integration.

Durable and Reliable

Equipped with a print head life of 400 million strokes per wire and an MTBF of 20,000 hours to ensure long-term durability.

Energy Efficient

Consumes 46 W during operation and just 3 W in economy mode, reducing power consumption without impacting performance.

Product Specifications

• Printing Method: Impact dot matrix
• Number of Pins: 24
• Number of Columns: 136
• Print Speeds:Letter Quality (LQ): 10 cpi – 120 cps, 12 cpi – 144 cps, High-Speed Draft: 10 cpi – 480 cps, 12 cpi – 576 cps, Draft: 10 cpi – 360 cps, 12 cpi – 432 cps
• Printing Resolution: 360 x 180 dpi
• Multi-Part Forms: Original + 5 copies
• Paper Handling: Single sheet front/rear, continuous media front/rear, paper output rear
• Supported Media: Single/multi-layer sheets, continuous paper, labels, roll paper, envelopes, cardboard
• Interfaces: USB 2.0, Bidirectional Parallel, Optional Ethernet (100Base-TX/10Base-T), Optional RS-232
• Memory: 128 kB
• Ribbon Type: High-yield black ribbon
• Ribbon Yield: Approx. 15,000,000 characters (Black Draft)
• Power Consumption: 46 W (active), 3 W (economy)
• Dimensions: 693 x 405 x 268 mm (W x D x H)
• Weight: 13 kg
• Noise Level: 54 dB(A) during operation
• Operating Environment: 5°–35°C, 10%–80% humidity
• Emulations: ESC/P2, IBM PPDS
• Software Included: Epson Status Monitor
• Print Head Life: 400 million strokes per wire
• Mean Time Between Failures (MTBF): 20,000 hours
• Supported Operating Systems: Windows 98, 2000, XP (32/64-bit), Vista, 7, 8
