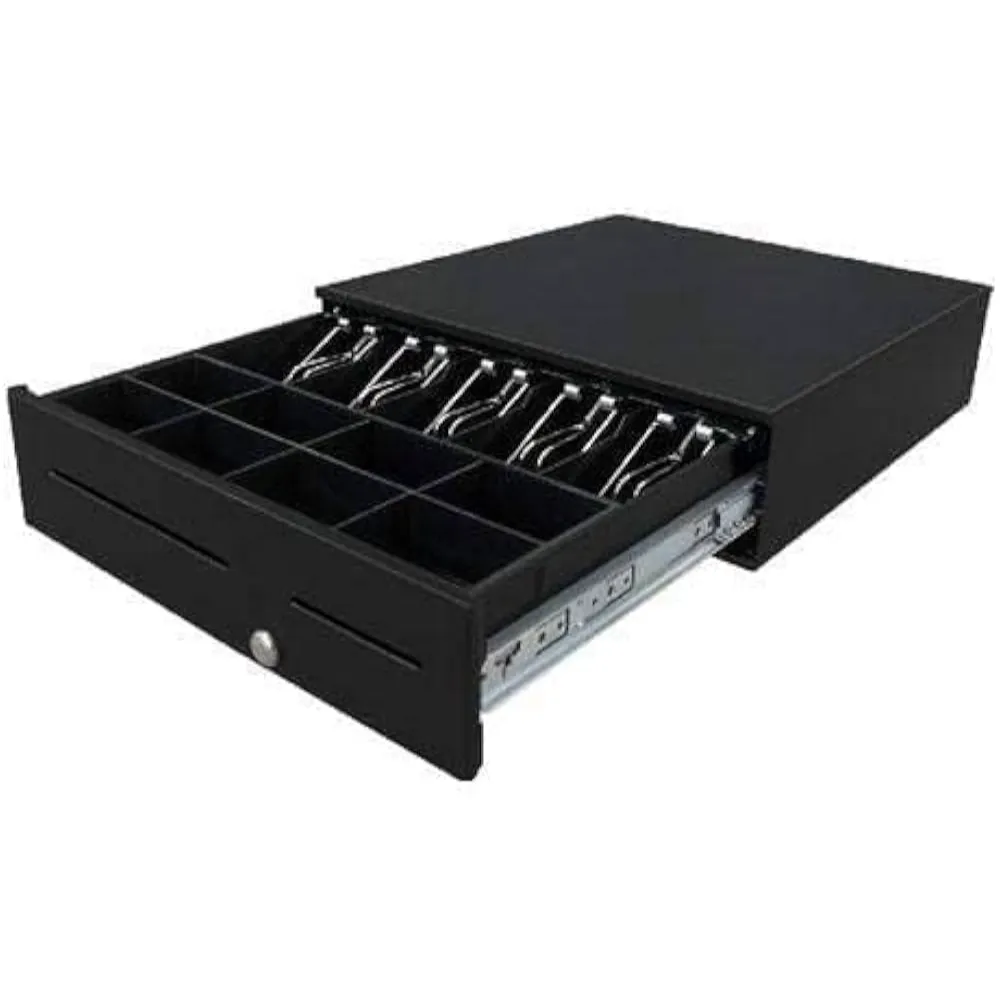

EPOS Cash Drawer (ECH 410)

The EPOS ECH 410 is a heavy-duty electronic cash drawer designed for high-traffic retail and hospitality environments. Built with thick-gauge cold-rolled steel and SECC (galvanized steel), it offers exceptional durability and security. Compatible with most POS systems, the ECH 410 features a versatile layout with multiple bill and coin compartments, front-access media slots, and a 3-position key lock to safeguard cash. Its reliable construction and smooth operation make it ideal for businesses that demand efficiency and protection in daily transactions.

Product Features

Robust Construction

The cash drawer is made from durable steel and rated for over one million operations, ensuring long-term performance even in busy retail and hospitality settings.

Secure Operation

Equipped with a 3-position key lock system—manual, electronic, and locked—the ECH 410 safeguards cash and sensitive materials from unauthorized access.

Flexible Storage Layout

The drawer includes a removable till with 4 or 5 bill compartments with wire grippers and 8 coin compartments, allowing organized cash handling. Front-access slots provide convenient storage for checks, credit card slips, or large bills without opening the drawer.

Smooth and Reliable Movement

Ball-bearing rollers or polyurethane tracks ensure quiet, reliable sliding action, enhancing daily usability in customer-facing areas.

Connectivity

The ECH 410 integrates seamlessly with most POS printers and electronic cash registers via standard RJ11/RJ12 interfaces, with optional support for USB or RS232 (Serial) connections.

Emergency Access

Includes an emergency release lever for manual access in the event of a power failure, maintaining uninterrupted cash management.

Product Specifications

• Dimensions: 410 mm (W) × 415 mm (D) × 100 mm (H)
• Weight: 6.8–7.0 kg
• Voltage Support: Compatible with 12V or 24V solenoids
• Interface: Standard RJ11/RJ12 (printer-driven); optional USB or RS232 (Serial)
• Durability: Rated for over 1,000,000 cycles (MTBF)
• Bill Compartments: 4 or 5 adjustable slots with heavy-duty wire grippers
• Coin Compartments: 8 removable slots (adjustable in some variants)
• Media Slots: One or two front-access slots for checks, coupons, or large bills
• Locking System: 3-position key lock (manual, electronic, deadlock)
• Status Reporting: Built-in micro-switch to communicate open/closed status to POS software
• Sliding Mechanism: Ball-bearing or polyurethane rollers for smooth operation
• Emergency Release: Lever for manual opening if power fails
