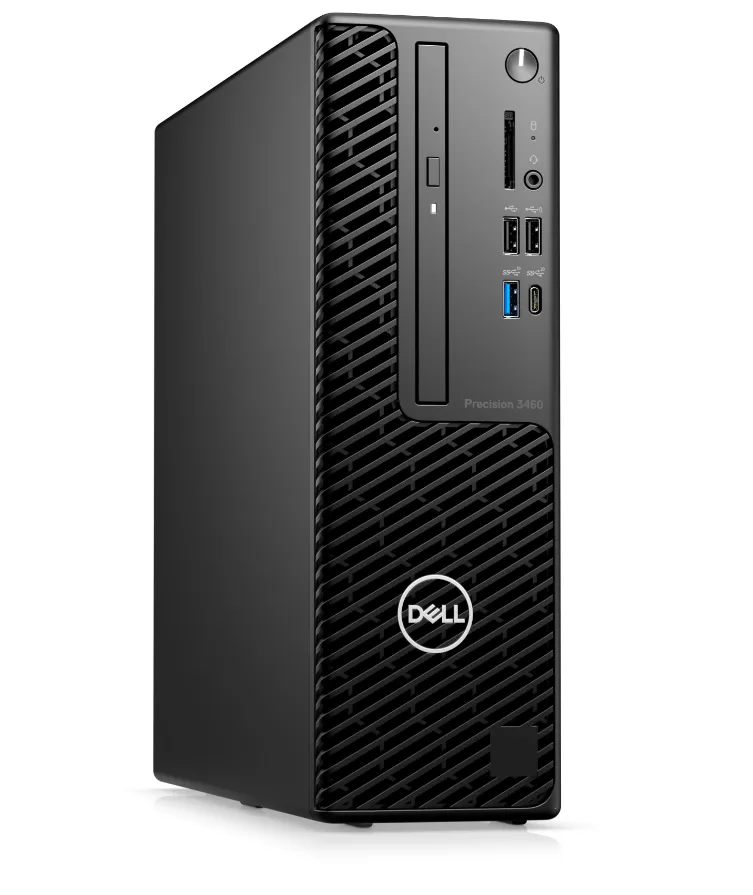

Dell Precision 3460 SFF Intel Core i9 14900 64GB DDR5 5600 5TB SSD (210-BCTU-I9NVW)

The Dell Precision 3460 Small Form Factor (SFF) Workstation (210-BCTU-I9NVW) is a high-performance professional desktop built for demanding workloads such as CAD, 3D rendering, data visualization, and complex simulations. Featuring the latest 14th Gen Intel Core i9 processor, 64GB DDR5 RAM, and a massive 5TB NVMe SSD storage, this compact workstation delivers exceptional speed, reliability, and multitasking capability in a space-efficient design. With a dedicated NVIDIA RTX A400 GPU, advanced connectivity options, and Windows 11 Pro, it is engineered to handle intensive professional applications without compromise.

Product Features

High-Performance Processor

Powered by the Intel Core i9-14900 (14th Gen), this workstation has 24 cores (8 Performance, 16 Efficiency) and 32 threads, providing a base frequency of 2.0 GHz and a maximum turbo frequency of 5.8 GHz. A 36MB L3 cache ensures smooth performance for heavy computational tasks.

Advanced Graphics

Equipped with the NVIDIA RTX A400 GPU with 4GB GDDR6 memory, this system supports up to four 4K displays simultaneously through Mini DisplayPort 1.4a outputs, making it ideal for 3D modeling, video editing, and high-end visualization.

Massive Memory Capacity

The 64GB DDR5 5600 MHz RAM is installed via two SODIMM slots, enabling seamless multitasking and fast data processing. The maximum supported memory ensures peak efficiency for large-scale projects.

Extensive Storage

With 5TB NVMe SSD storage split across a 1TB boot drive and a 4TB data drive, this workstation delivers rapid read/write speeds, large capacity, and integrated Intel Rapid Storage Technology with RAID support for data security and performance.

Comprehensive Connectivity

Front and rear I/O ports include USB-C 3.2 Gen 2×2, multiple USB-A ports, RJ45 Ethernet, audio outputs, and multiple DisplayPorts, providing flexible connectivity for multi-device setups, peripherals, and external displays.

Compact Professional Design

The Small Form Factor chassis offers professional-grade thermal management while occupying minimal desk space. With a 300W 80 Plus Platinum certified PSU, one half-height PCIe Gen 4 x16 slot, and one half-height PCIe Gen 3 x4 slot, the system supports efficient expansion and energy-efficient operation.

Product Specifications

• Processor: Intel Core i9-14900 (14th Gen, 24 cores, 32 threads, 2.0–5.8 GHz, 36MB L3 cache)
• Memory: 64GB DDR5 5600 MHz (non-ECC, 2 SODIMM slots, max 64GB)
• Storage: 5TB NVMe SSD (1TB boot + 4TB data) with Intel Rapid Storage Technology (RAID 0, 1, 5, 10)
• Graphics: NVIDIA RTX A400, 4GB GDDR6, four Mini DisplayPort 1.4a outputs
• Operating System: Windows 11 Pro
• Form Factor: Small Form Factor (SFF), black resin chassis, 290 × 92.6 × 292.8 mm, 5.38 kg
• Power Supply: 300W internal PSU, 80 Plus Platinum certified (92% efficiency)
• Expansion Slots: 1 x PCIe Gen 4 x16 half-height, 1 x PCIe Gen 3 x4 half-height
• Front Ports: 1 x USB-C 3.2 Gen 2×2, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 (one PowerShare), 1 x Universal Audio Jack
• Rear Ports: 1 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 3 x DisplayPort 1.4a, 1 x RJ45 Ethernet, 1 x re-tasking audio line-out/line-in
