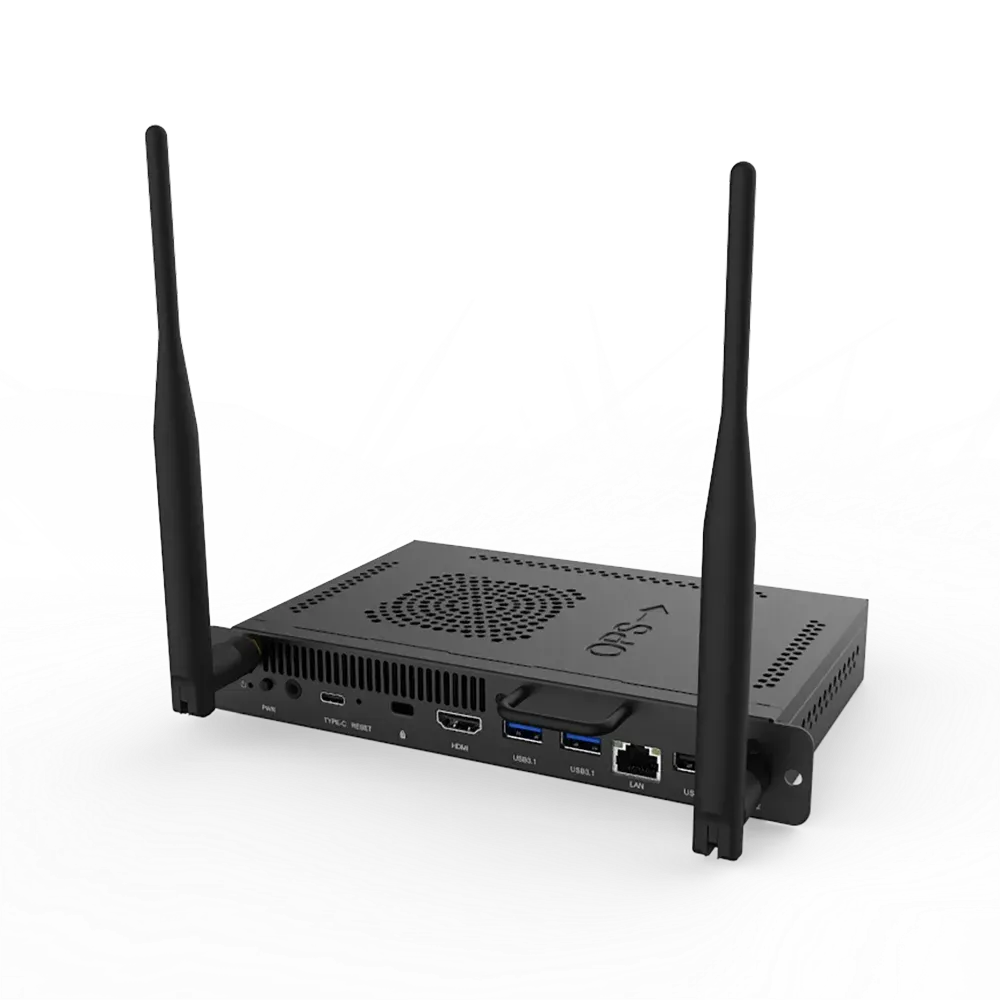

Dahua SP-PI7B82IS Intel Tiger Lake-H i7 OPS Module (DHI-SP-PI7B82IS)

The Dahua SP-PI7B82IS Intel Tiger Lake-H i7 OPS Module is a high-performance Open Pluggable Specification computing solution designed for professional interactive displays, digital signage, and enterprise collaboration systems. Powered by the Intel® Core™ i7-11370H processor and Intel® Iris® Xe Graphics, it delivers fast processing power and efficient graphics performance for demanding multimedia and business applications. Its compact OPS design allows seamless integration into compatible Dahua displays, transforming them into full-featured Windows-based computing platforms.

Product Features

High-Performance Intel® Core™ i7 Processor

Equipped with the Intel® i7-11370H processor, offering 4 cores and 8 threads with turbo performance up to 3.3GHz for smooth multitasking and responsive system operation.

Intel® Iris® Xe Graphics

Integrated Iris Xe Graphics deliver enhanced visual performance, supporting high-resolution 4K content playback and advanced display applications.

Flexible Operating System Support

Supports Windows 11 Pro or deployment without an operating system, making it suitable for enterprise, education, and commercial digital signage use cases.

Fast Memory and Storage Configuration

Includes 8GB DDR4 memory and a 256GB NVMe/SATA M.2 SSD, ensuring fast boot times, efficient multitasking, and reliable data handling.

Advanced Wireless Connectivity

Supports Wi-Fi 6 (802.11ax) and Bluetooth 5.2 via M.2 module, providing fast and stable wireless communication for modern network environments.

Comprehensive Connectivity Options

Offers multiple I/O interfaces including HDMI, USB 3.1, USB 2.0, Type-C, and Gigabit Ethernet for seamless integration with peripherals and display systems.

OPS Standard Integration

Built on the 80-pin JAE OPS interface, allowing easy plug-and-play installation into compatible Dahua interactive displays and signage systems.

Compact and Efficient Design

Engineered in a slim OPS form factor with optimized power consumption and thermal management for continuous commercial operation.

Product Specifications

• Model: DHI-SP-PI7B82IS
• Processor: Intel® Core™ i7-11370H (up to 3.3GHz)
• Cores / Threads: 4 cores, 8 threads
• Cache: 12MB L3
• Chipset: SoC
• Graphics: Intel® Iris® Xe Graphics
• Memory: 8GB DDR4 2400MHz
• Storage: 256GB M.2 SSD (NVMe/SATA, 2280)
• Wireless: Wi-Fi 6 (802.11ax), Bluetooth 5.2 via M.2 2230 module
• Audio Chip: Realtek ALC897
• BIOS: AMI UEFI BIOS
• Operating System Support: Windows 11 Pro (optional) or no OS
• Power Input: DC 12–19V
• Power Consumption: Maximum 57.7W
• Standby Power: 0.8W
• Ports:
  • HDMI 1.4 ×1 (up to 4K@30Hz)
  • USB 3.1 Type-A ×2
  • USB 2.0 ×1
  • USB Type-C ×1
  • RJ45 Gigabit Ethernet ×1
  • Line-out / MIC-in combo ×1
  • DC input ×1
• Expansion Interface: 80-pin JAE OPS connector
• Operating Temperature: -5°C to 45°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 95% non-condensing
• Storage Humidity: 10% to 95% non-condensing
• Dimensions: 119 × 180 × 30 mm
• Net Weight: 0.75 kg
• Gross Weight: 0.95 kg
• Casing Material: SGCC metal
• Color: Black
• Accessories: 2 antennas, screws, desiccant, user manual
• Certifications: CE
