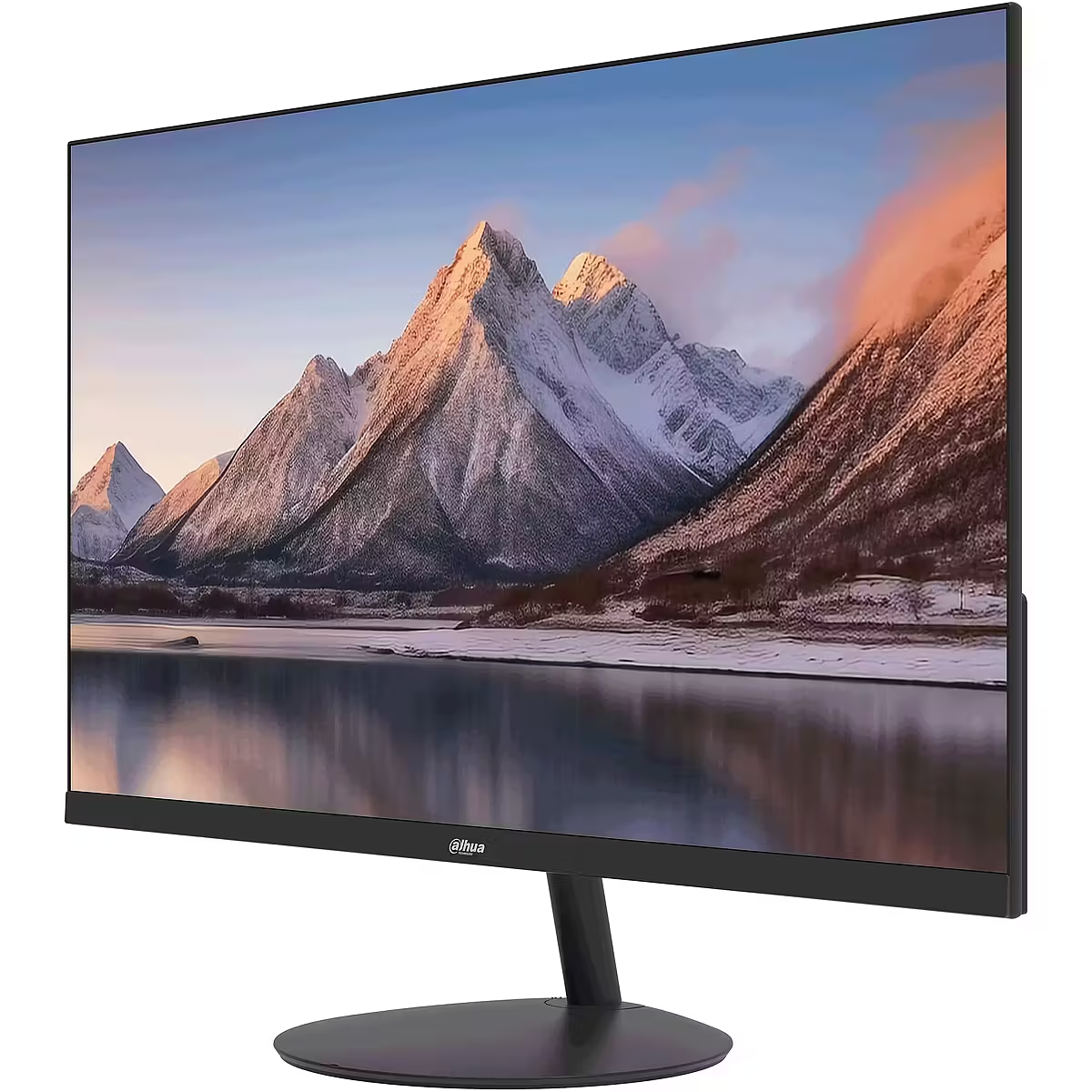

Dahua A200Y 21.45″ Monitor, 1920×1080 FHD Resolution (DHI-LM22-A200Y)

The Dahua A200Y 21.45-inch monitor (DHI-LM22-A200Y) delivers crisp Full HD visuals, smooth 100Hz refresh rate performance, and an ultra-wide 178° viewing angle for an immersive viewing experience. Designed with an ultra-narrow bezel and elegant form factor, this monitor is ideal for office work, home use, and multi-screen setups. With vibrant color reproduction, multiple input options including HDMI and VGA, and energy-efficient operation, it provides a reliable and modern display solution for both productivity and entertainment.

Product Features

Full HD Visual Clarity

Enjoy sharp and detailed images with a 1920×1080 Full HD resolution, providing clear visuals for work, media, and everyday computing tasks.

100Hz Smooth Refresh Rate

Experience fluid motion and reduced screen lag with a 100Hz refresh rate, making scrolling, video playback, and light gaming smoother and more responsive.

Ultra-Wide 178° Viewing Angles

The VA panel ensures consistent image quality from virtually any angle, delivering accurate colors and contrast whether viewed from the front or sides.

Ultra-Narrow Bezel Design

The slim bezel enhances screen immersion and makes this monitor ideal for dual or multi-monitor setups.

High Contrast and Vivid Colors

With a 3000:1 contrast ratio and high-fidelity digital processing, the monitor produces deep blacks and vibrant colors for a more lifelike viewing experience.

Versatile Connectivity Options

Equipped with HDMI and VGA ports, the monitor supports easy connection to a wide range of devices including PCs, laptops, and surveillance systems.

Energy-Efficient and Durable

Low power consumption and a long lifespan of up to 30,000 hours ensure reliable and cost-effective performance over time.

Product Specifications

• Model: DHI-LM22-A200Y
• Screen Size: 21.45 inches
• Panel Type: VA
• Backlight: ELED
• Aspect Ratio: 16:9
• Resolution: 1920 × 1080 (Full HD)
• Refresh Rate: 100 Hz
• Brightness: 250 cd/m²
• Contrast Ratio: 3000:1
• Response Time: 10 ms
• Viewing Angle: 178° horizontal, 178° vertical
• Display Colors: 8-bit
• Color Gamut: 72% NTSC (typical)
• Pixel Pitch: 0.2493 mm × 0.241 mm
• Pixels Per Inch: 102.69
• Viewing Area: 478.656 mm × 260.28 mm
• Input Ports: 1 × VGA (1080p at 60 Hz), 1 × HDMI 1.4 (1080p at 100 Hz)
• Power Supply: 12 V DC, 2 A
• Power Type: External power adapter
• Power Consumption: 14 W (basic), 16 W (typical), 16 W (maximum)
• Standby Power Consumption: < 0.5 W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% RH
• Storage Temperature: -20°C to 60°C
• Storage Humidity: 5% to 90% RH
• Tilt Angle: -5° ±2° to 15° ±2°
• VESA Mount: 75 × 75 mm
• Dimensions (without mount): 492.7 × 284.0 × 41.2 mm
• Package Dimensions: 598 × 366 × 99 mm
• Net Weight: 2.05 kg
• Gross Weight: 2.86 kg
• Bezel Width: 3.3 mm (top/left/right), 15.2 mm (bottom)
• Casing Color: Black
• Control Method: Five-button control
• Accessories: Power adapter, base, HDMI cable, user manual (QR code), legal and regulatory information
• Optional Accessories: Wall mount
• Certifications: CE EMC, CE LVD, CE ERP
