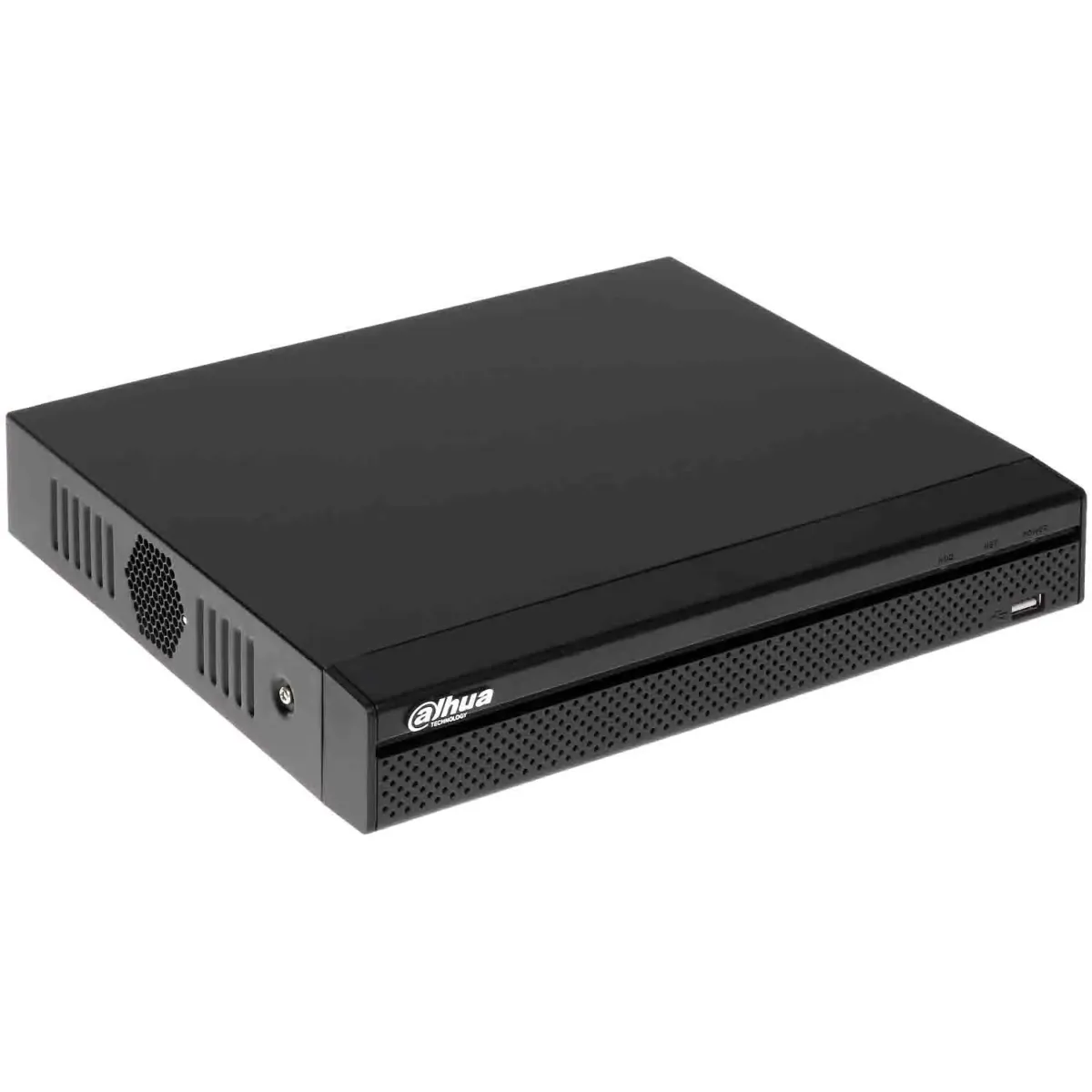

Dahua 8-Channel NVR Video Recorder (DHI-NVR1108HS-8P-S3/H)

The Dahua NVR1108HS-8P-S3/H is a compact 8-channel 1U network video recorder designed for efficient IP surveillance management in residential, retail, and small-to-medium business environments. As part of Dahua’s Lite Series, it combines built-in PoE ports, high-resolution 4K recording support, and advanced Smart H.265+ compression to deliver reliable video storage and seamless camera integration. With its plug-and-play setup and intelligent video management features, it provides a complete and scalable surveillance recording solution.

Product Features

8-Channel IP Camera Recording Support

The NVR supports up to 8 IP cameras simultaneously, making it ideal for small to medium surveillance systems. It delivers stable performance for multi-camera monitoring environments such as homes, offices, and retail stores.

Built-in 8-Port PoE Connectivity

With 8 integrated PoE (Power over Ethernet) ports, the recorder supplies both power and data through a single cable per camera. This simplifies installation, reduces wiring complexity, and improves system reliability.

4K Ultra HD Recording Capability

The system supports recording resolutions up to 8MP (4K), ensuring clear and detailed video capture. This level of clarity enhances facial recognition, object tracking, and incident review accuracy.

Smart H.265+ Compression Technology

Advanced Smart H.265+ encoding significantly reduces bandwidth and storage consumption while maintaining high video quality. This improves long-term storage efficiency and lowers operational costs.

Efficient Remote Monitoring via Mobile App

The NVR supports P2P remote access through the Dahua DMSS mobile application, allowing users to view live video, playback recordings, and manage the system from anywhere using smartphones or tablets.

Flexible Video Output Options

Equipped with HDMI and VGA outputs, the system supports simultaneous video display for monitoring stations, offering flexible integration with monitors and control rooms.

Intelligent Video Management Functions

The recorder supports motion detection, video loss alerts, and privacy masking. It also provides anomaly detection features such as network interruption and storage failure notifications for enhanced system reliability.

Wide Compatibility and System Integration

Fully compatible with ONVIF (Profile S/G/T) and RTSP protocols, the NVR integrates easily with third-party IP cameras and security systems for flexible deployment.

Product Specifications

• Model: NVR1108HS-8P-S3/H
• Channels: 8 IP camera inputs
• Video Compression: Smart H.265+, Smart H.264+, H.265, H.264
• Maximum Resolution: Up to 8MP (4K)
• Incoming Bandwidth: 80 Mbps
• Recording Bandwidth: 80 Mbps
• Decoding Capability: 1 × 8MP @ 30 fps or 4 × 1080p @ 30 fps
• PoE Ports: 8 × IEEE 802.3af/at
• PoE Power Budget: 72W total (max 25.5W per port)
• Storage: 1 × SATA port supporting up to 8TB HDD
• Video Output: HDMI (up to 1080p), VGA
• Network Interface: 1 × RJ-45 (10/100 Mbps)
• USB Ports: 2 × USB 2.0
• Audio Support: G.711A, G.711U, G.726, PCM (two-way talk supported)
• Operating System: Embedded Linux
• User Access: Up to 128 users
• Protocol Support: ONVIF, RTSP, CGI, SDK
• Power Supply: DC 48V/53V, 2A/1.8A
• Power Consumption: ≤10W (without HDD)
• Operating Temperature: –10 °C to +45 °C
• Operating Humidity: 10%–93%
• Housing Material: Metal
• Dimensions: 260 × 225 × 47.6 mm
• Weight: 0.81 kg (without HDD)
