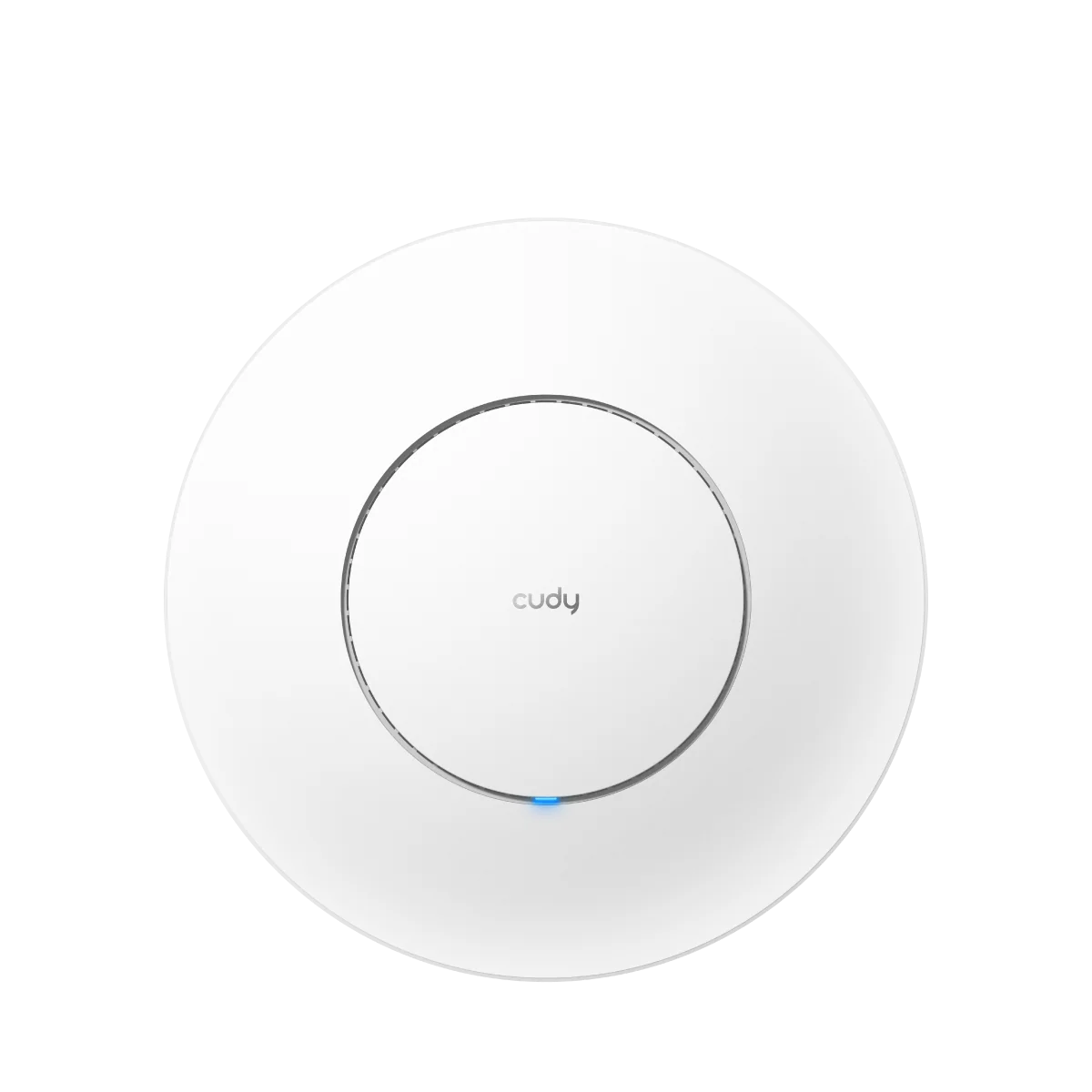

Cudy AP1300 AC1200 Indoor Gigabit Wi-Fi Access Point (CUDY AP1300 INDOOR)

The Cudy AP1300 AC1200 Indoor Gigabit Wi-Fi Access Point is a high-performance wireless solution designed for offices, classrooms, and enterprise environments that require stable, high-density connectivity. Built on Wi-Fi 5 technology, it delivers combined speeds of up to 1200 Mbps for smooth browsing, streaming, and business applications. With PoE support, multi-AP management, and advanced mesh integration, it provides flexible deployment options for scalable networks. Its ceiling or wall-mounted design ensures optimal coverage, while enterprise-grade features such as VLAN support, captive portal, and VPN capabilities make it ideal for professional network environments.

Product Features

High-Speed AC1200 Dual-Band Wi-Fi Performance

Delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, ensuring fast and stable connectivity for multiple users and devices.

Enterprise-Grade Multi-User Capacity

Supports up to 100 connected devices, making it suitable for offices, schools, and high-density environments.

Flexible PoE and DC Power Options

Supports 802.3af/at PoE, passive PoE, and DC power input, allowing flexible installation without needing nearby power outlets.

Cudy Mesh and Multi-AP Management

Enables seamless mesh networking and centralized multi-AP management for expanded coverage and simplified network control.

Captive Portal and VLAN Support

Includes captive portal functionality and VLAN tagging, ideal for guest networks, offices, and managed Wi-Fi environments.

Advanced Security and Firewall Protection

Features WPA/WPA2/WPA3 encryption, SPI firewall, DoS protection, and DNS security options for secure network operation.

VPN Server and Client Integration

Supports WireGuard, OpenVPN, IPsec, Zerotier, PPTP, and L2TP for secure remote access and encrypted communication.

Ceiling and Wall Mount Design

Designed for professional installation on ceilings or walls, ensuring optimal signal distribution and clean deployment.

Product Specifications

• Wi-Fi Standard: Wi-Fi 5 (802.11ac)
• Wi-Fi Speed: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)
• CPU: 880 MHz dual-core processor
• Memory: 128 MB DDR3 RAM
• Flash Storage: 16 MB NOR
• Antennas: 4 × internal antennas
• MU-MIMO: Supported (5 GHz band)
• Maximum Capacity: Up to 128 devices
• Recommended Client Limit: 100 devices
• Ethernet Port: 1 × Gigabit RJ45 (PoE supported)
• Power Options: 802.3af/at PoE, passive PoE, DC 12V/1A
• Power Consumption: Up to 11W (PoE), 7.5W (DC)
• Installation Type: Ceiling mount or wall mount
• Dimensions: 231.9 × 57.1 mm (diameter × height)
• Weight: Approximately 395.6 g
• Operating Temperature: -10°C to 65°C
• Storage Temperature: -40°C to 70°C
• Humidity Range: 10% to 90% non-condensing
• Security Protocols: WPA, WPA2, WPA3
• Network Features: VLAN support, QoS, IGMP snooping, captive portal, DHCP server
• IPv6 Support: SLAAC, DHCPv6, DS-Lite, MAP-E, 464XLAT, passthrough
• VPN Support: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
• Firewall Features: SPI firewall, DoS protection, block PING
• Management Options: Web UI, Cudy App, TR069 remote management
• Multi-AP Management: Supported via Cudy AP Controller
• Firmware Upgrade: Online, app-based (OTA), and local update
• Diagnostic Tools: Ping, traceroute, NSLookup, system logs
• Additional Features: Timed reboot, backup and restore, LED control, Wake-on-LAN
• Coverage Performance: Up to 170 meters in open space under ideal conditions
• Package Contents: AP1300 unit, mounting kit, installation guide, PoE adapter (for _P model only), Ethernet cable (for _P model only)
